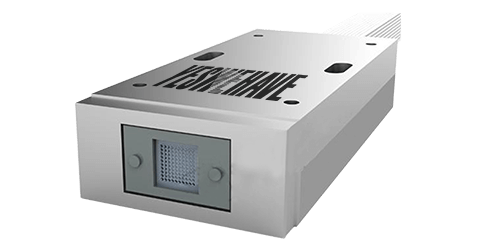

2D Polarization Maintaining Fiber Array
Our polarization-preserving fiber arrays are divided into two series: one-dimensional linear array and two-dimension a surface array. These two series are made of silicon-based aperture plates, which are characterized by high alignment accuracy and no cumulative error, and can transmit the polarization-preserving signal in the surface array.
Parameter | Unit | Value |
Arrangement Mode | - | Arbitrary Shape |
Min-Permutation Period | μm | 127 |
Diameter of Fiber | μm | 125 |
Fiber Type | - | PM Fiber |
Pitch Error | μm | ± 1 |
Core Position Error | μm | ± 1 |
Accumulative Error | - | 0 |
Numerical Aperture | - | 0.12 |
Wavelength | nm | 780/980/1550… |
Extinction Ratio | dB | >20 (@1550 nm) |
Return Loss | dB | >50 |
Insertion Loss | dB | < 0.5 |
Working Axis | - | Slow Axis Alignment |
Axis Accuracy | - | ± 3° |
Connector | - | FC/APC |
Length | m | 1 m |
