1064 nm 300 mW Polarization Maintaining Isolator
The 1064 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.

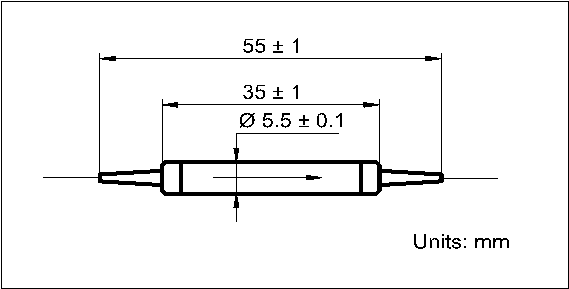

Parameter | Unit | Value | |||
Stage | - | Single Stage | Dual Stage | ||
Grade | - | Grade P | Grade A | Grade P | Grade A |
Center Wavelength (λc) | nm | 1064 | |||
Typ. Peak Isolation | dB | 38 | 36 | 55 | 52 |
Min. Isolation, λc, 23 ℃ | dB | 35 | 32 | 45 | 42 |
Typ. Insertion Loss, λc, 23 ℃ | dB | 1.5 | 1.6 | 2.4 | 2.6 |
Max. Insertion Loss, λc, all temperature | dB | 2.0 | 2.2 | 3.4 | 3.6 |
Min. Extinction Ratio | dB | 20 | 18 | 20 | 18 |
Min. Return Loss (Input/Output) | dB | 55/50 | 55/50 | 55/50 | 55/50 |
Max. Average Optical Power | mW | 300 | |||
Max. Peak Power for ns Pulse | kW | 10 | |||
Max. Tensile Load | N | 5 | |||
Fiber Type | - | PM 980 Panda Fiber | |||
Operating Temperature | ℃ | - 5 to + 50 | |||
Storage Temperature | ℃ | - 40 to + 85 | |||
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
2Connector key is aligned to slow axis.
3The isolation is related to the input power.Please inform us when you need high isolation and operate above 30 mW.
