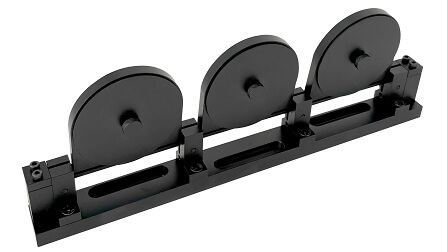

Manual Fiber Polarization Controller - 27 mm Loop
YESWEHAVE' Fiber Polarization Controllers use stress-induced birefringence produced by wrapping the fiber around two or three spools to create independent wave plates that will alter the polarization of the transmitted light in a single mode fiber. The fast axis of the fiber is in the plane of the spool, allowing an arbitrary input polarization state to be adjusted by rotating the paddles.
Parameter | Value | ||
Number of Paddles | 3 | ||

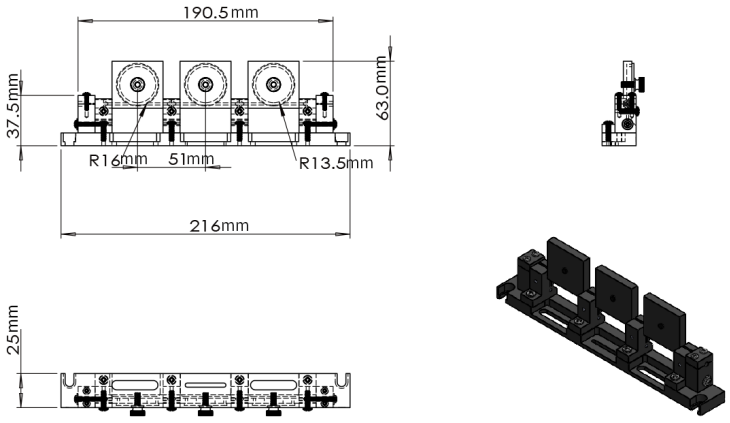

Loop Diameter | 27 mm | ||
Paddle Rotation | ± 117.5° | ||
Specifications for Preloaded Fiber | |||
Fiber | HI 780 | HI 1060 | SMF-28 ultra |
Operating Wavelength Range* | 780 - 970 nm | 980 - 1650 nm | 1260 - 1625 nm |
Design Wavelength | 780 nm and 850 nm | 980 nm and 1064 nm | 1310 nm and 1550 nm |
Mode Field Diameter | 4.6 ± 0.5 µm @ 780 nm 5.0 ± 0.5 µm @ 850 nm | 5.9 ± 0.3 µm @ 980 nm | 9.7 ± 0.4 µm @ 1310 nm |
Cutoff Wavelength | 730 ± 30 nm | 920 ± 50 nm | ≤ 1260 nm |
Numerical Aperture | 0.13 | 0.14 | 0.14 |
Jacketing | Ø900 µm Loose Tube | ||
Loop Configuration | 1 - 2 - 1 Loops | 3 - 2 - 3 Loops | 4 - 3 - 4 Loops |
Total Fiber Length** | 2 m + 7 / -0 cm | ||
Fiber Lead Length*** | 83 cm | 66 cm | 70 cm |
Bend Loss | ≤ 0.1 dB | ||
*Devices with preloaded fiber, as shipped by YESWEHAVE, are configured to approximate quarter-wave and half-wave plates when used at this wavelength.
**Total fiber length is the total length of pre-loaded fiber inside and outside controller.
***Fiber lead length refers to the length of fiber protruding from the device on either side of the controller, as shipped by YESWEHAVE.
