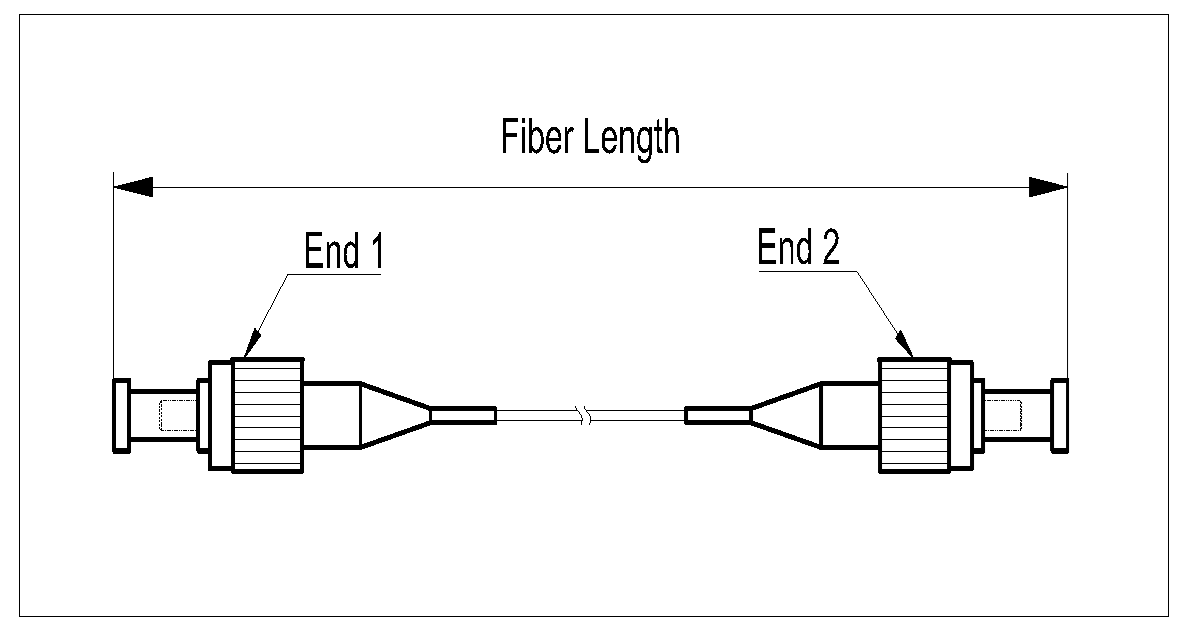

Package Dimensions

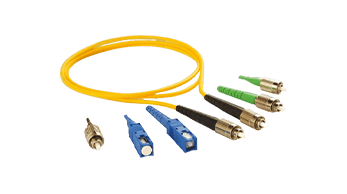

Polarization Maintaining Patchcord
Overview
The PM Patchcord series has excellent environmental stability, high return loss, low insertion loss. It is ideal for PM amplifiers, fiber lasers and test instrumentation applications.
Parameter | Unit | Value | |
Connector Type | - | UPC | APC |
Wavelength | nm | *980, *1060, 1310, 1480 or 1550 | |
Typ. Insertion Loss | dB | 0.3 | 0.4 |
Max. Insertion Loss | dB | *0.5 | |
Min. Return Loss | dB | 50 | 60 |
Min. Extinction Ratio | dB | 23 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Fiber Length Tolerance | % | ± 10 or specify | |
Operating Temperature | ℃ | - 5 to + 70 | |
Storage Temperature | ℃ | - 40 to + 85 | |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Polarization Maintaining Patchcord
- Configuration: 980 nm 2.02 mm FC/APC 250 μm Bare Fiber 1.0 m PM Panda Fibe - Price: $100 - Stock: 994
- Configuration: 980 nm 2.02 mm FC/APC 900 μm Loose Tube 1.0 m PM Panda Fibe - Price: $100 - Stock: 998
- Configuration: 980 nm 2.02 mm FC/APC 900 μm Tight Buffer 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 980 nm 2.02 mm FC/APC 2 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 980 nm 2.02 mm FC/APC 3 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1060 nm 2.02 mm FC/APC 250 μm Bare Fiber 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1060 nm 2.02 mm FC/APC 900 μm Loose Tube 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1060 nm 2.02 mm FC/APC 900 μm Tight Buffer 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1060 nm 2.02 mm FC/APC 2 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1060 nm 2.02 mm FC/APC 3 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1310 nm 2.02 mm FC/APC 250 μm Bare Fiber 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1310 nm 2.02 mm FC/APC 900 μm Loose Tube 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1310 nm 2.02 mm FC/APC 900 μm Tight Buffer 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1310 nm 2.02 mm FC/APC 2 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1310 nm 2.02 mm FC/APC 3 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1480 nm 2.02 mm FC/APC 250 μm Bare Fiber 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1480 nm 2.02 mm FC/APC 900 μm Loose Tube 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1480 nm 2.02 mm FC/APC 900 μm Tight Buffer 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1480 nm 2.02 mm FC/APC 2 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1480 nm 2.02 mm FC/APC 3 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1550 nm 2.02 mm FC/APC 250 μm Bare Fiber 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1550 nm 2.02 mm FC/APC 900 μm Loose Tube 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1550 nm 2.02 mm FC/APC 900 μm Tight Buffer 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1550 nm 2.02 mm FC/APC 2 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
- Configuration: 1550 nm 2.02 mm FC/APC 3 mm Cable 1.0 m PM Panda Fibe - Price: $100 - Stock: 1000
