Overview

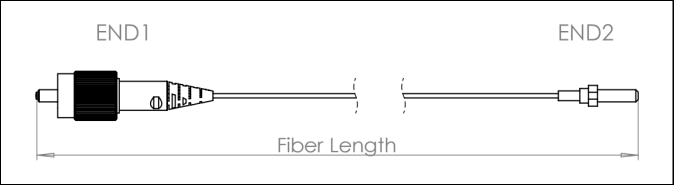

Package Dimensions

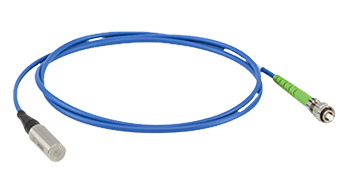

Fiber Reflector
Overview
The Fiber optic reflector is a passive optical device that returns the input light to its original path.
Parameter | Unit | Value |
Operating Wavelength | nm | 1310 ± 60 |
Max. Insertion Loss | dB | 0.3 |
Max. Optical Power (Continuous Wave) | mW | 300 |
Reflectance | % | ≥ 99.5 |
Fiber Length Tolerance | mm | ± 3 |
Operating Temperature | ℃ | - 5 to + 70 |
Storage Temperature | ℃ | - 40 to + 80 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Fiber Reflector
- Configuration: 1310 nm FC/APC 900 μm loose tube 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm bare fiber 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm loose tube 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm bare fiber 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm None 900 μm loose tube 1 m SMF-28 - Price: $50 - Stock: 998
- Configuration: 1310 nm None 250 μm bare fiber 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm Specify 900 μm loose tube 1 m SMF-28 - Price: $50 - Stock: 1000
- Configuration: 1310 nm Specify 250 μm bare fiber 1 m SMF-28 - Price: $50 - Stock: 1000
