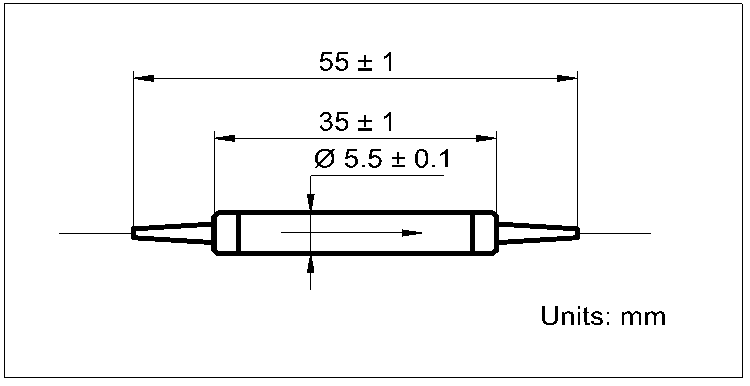

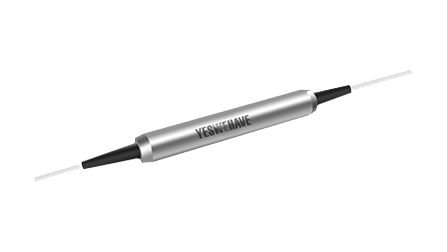

1064 nm 300 mW Polarization Sensitive Isolator
The Polarization Sensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The optical isolator is characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, fiber lasers, transmitters and other fiber optics communication equipment to suppress back reflection and back scattering.
Parameter | Unit | Value | |||
Stage | - | Single Stage | Dual Stage | ||
Grade | - | Grade P | Grade A | Grade P | Grade A |
Center Wavelength (λc) | nm | 1064 | |||
Typ. Peak Isolation | dB | 40 | 38 | 55 | 52 |
Min. Isolation, λc , All Polarization States, ≤ 30 mW | dB | 32 | 30 | 45 | 42 |
Typ. Insertion Loss, λc, All Polarization States | dB | 1.5 | 1.6 | 2.4 | 2.6 |
Max. Insertion Loss, λc, - 5 to + 50 ℃, All Polarization States | dB | 2.0 | 2.2 | 3.4 | 3.6 |
Min. Return Loss (Input/Output) | dB | 55/50 | 55/50 | 55/50 | 55/50 |
Min. Polarization Dependent Loss | dB | 20 | 20 | 20 | 20 |
Max. Optical Power (Continuous Wave) | mW | 300 | |||
Max. Tensile Load | N | 5 | |||
Fiber Type | - | HI 1060 | |||
Operating Temperature | ℃ | - 5 to + 50 | |||
Storage Temperature | ℃ | - 40 to + 85 | |||
1IL is 0.5 dB higher, RL is 5 dB lower for each connector added.
2The isolation is related to the input power. Please inform us when you need high isolation and operate above 30 mW.
