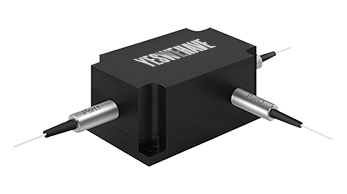

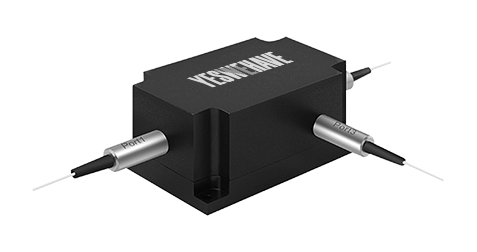

High Power Optical Circulator (TGG type 850 nm - 1064 nm)
The High Power Optical Circulator (TGG Type, 850 - 1064 nm) is designed for high-power laser and fiber optic systems, offering low insertion loss, high return loss, and excellent stability and reliability. Built with TGG crystal technology, it ensures efficient one-way light transmission and effective isolation of reflected signals, improving system protection and performance. This circulator is well suited for fiber amplifiers, test systems, and medical equipment where consistent optical performance is required.
Parameter | Unit | Value |
Center Wavelength | nm | 780, 850, 980, 1030, 1035, 1064, 1080 |
Bandwidth | nm | ±5 |
Typical Peak Isolation @23℃ | dB | 25 |
Isolation@23℃ | dB | 22 |
Typical Insertion Loss @23℃ | dB | 1.3 |
Max.Insertion Loss @23℃ | dB | 1.5 |
Max.PDL@23℃ | dB | 0.15 |
Return Loss | dB | 45 |
Power Handling | mW | 0.3 / 0.5 / 1.0 / 5.0 / 10 / 20 |
Max. Peak Power | KW | 10 |
Cross Talk | - | 45 |

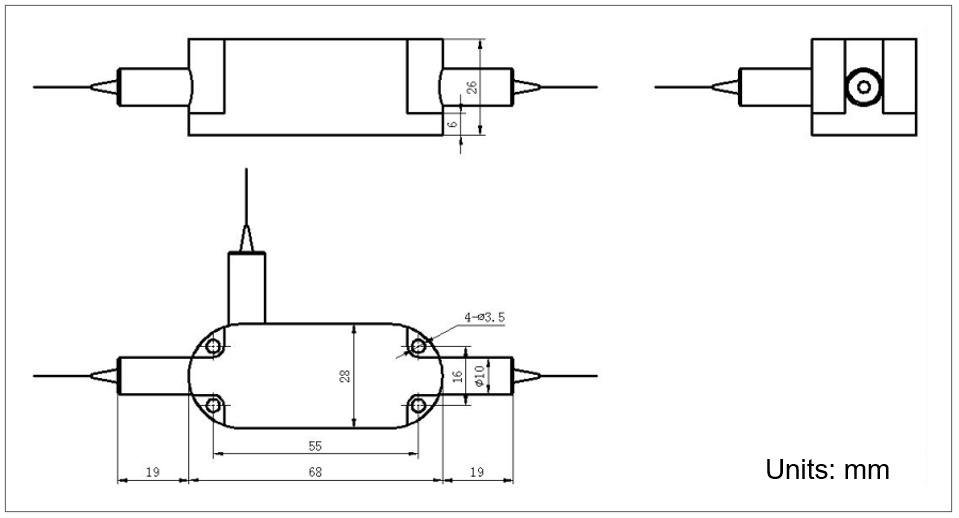

Dimensions | mm | 68 x 28 x 26 |
Tensile Load | N | 5 |
Operating Temperature | ℃ | -10 to +50 |
Storage Temperature | ℃ | 0 to +60 |
*For device with connector, IL is 0.5 dB higher, RL is 5 dB lower, ER is 2 dB lower.
*The default connector key is aligned to slow axis.
