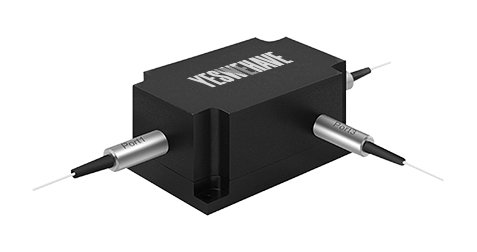

High Power Optical Circulator (TGG type 1055 nm)
Overview
The High Power Optical Circulator is designed for efficient unidirectional light routing in high-power fiber systems. Featuring low insertion loss and high return loss, it ensures minimal signal degradation and effective back-reflection suppression. With high stability and long-term reliability, this circulator is well suited for fiber amplifiers, optical test systems, and demanding medical equipment applications.
Parameter | Unit | Value |
Center Wavelength | nm | 1550 |
Bandwidth | nm | ±15 |
Typical Peak Isolation @23℃ | dB | 25 |
Isolation@23℃ | dB | 22 |
Typical Insertion Loss @23℃ | dB | 0.8 |
Max.Insertion Loss @23℃ | dB | 1 |
Return Loss | dB | 40 |
Power Handling | mW | 0.3 / 0.5 / 1.0 / 5.0 / 10 / 20 |
Max. Peak Power | KW | 10 |
Cross Talk | - | 40 |

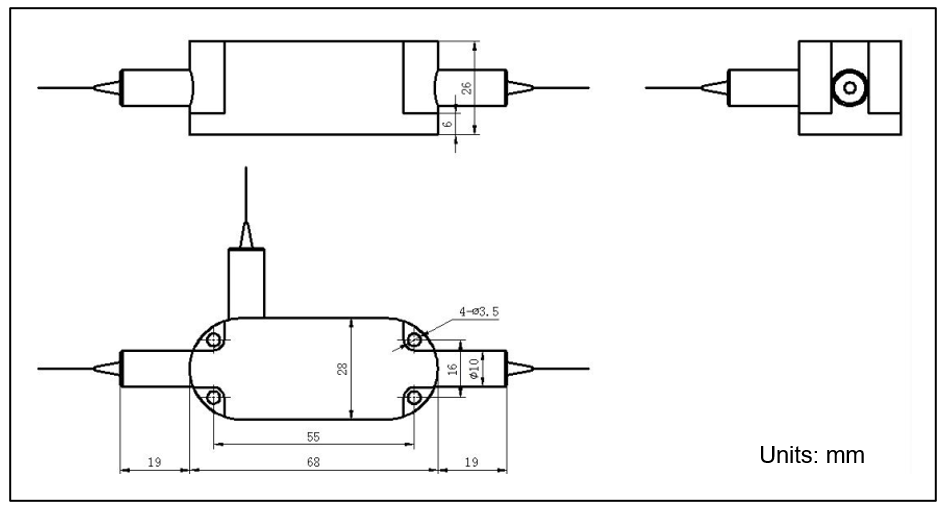

Dimensions | mm | 68 x 28 x 26 |
Tensile Load | N | 5 |
Operating Temperature | ℃ | -10 to +50 |
Storage Temperature | ℃ | 0 to +60 |
*The default connector key is aligned to slow axis.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for High Power Optical Circulator (TGG type 1055 nm)
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.5 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.5 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.5 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.75 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.75 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 0.75 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 1.0 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 1.0 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 250 μm Bare Fiber 1.0 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.5 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.5 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.5 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.75 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.75 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 0.75 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 1.0 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 1.0 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 900 μm Loose Tube 1.0 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.5 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.5 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.5 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.75 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.75 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 0.75 m None - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 1.0 m FC/UPC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 1.0 m FC/APC - Price: $10000 - Stock: 1000
- Configuration: 1055 nm Single Stage Non-PM HI1060 Fiber 3 mm Loose Tube 1.0 m None - Price: $10000 - Stock: 1000
