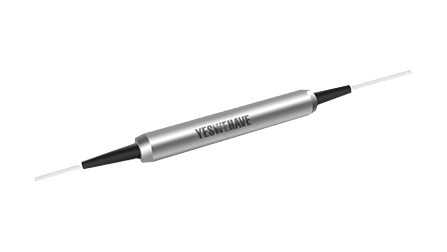

1064 nm 300 mW Polarization Maintaining Tap Isolator
The Polarization Maintaining Tap Isolator combines a tap coupler and polarization sensitive isolator into a single compact package. It has high extinction ratio and very low insertion loss. The PM Tap Isolator is ideal for fiber amplifier and fiber optic system where signal monitoring is required.

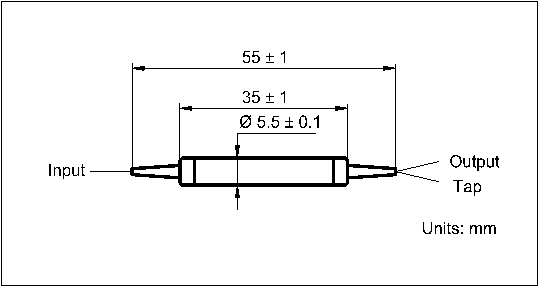

Parameter | Unit | Value | |
Stage | - | Single Stage | Dual Stage |
Center Wavelength (λc) | nm | 1064 | |
Max. Excess Loss | dB | 1.8 | 2.8 |
Tap Ratio (Tap IL = - 10 * log(Tap Ratio) + E.L) | % | 1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10 ± 2.0 | |
Typ. Peak Isolation | dB | 40 | 55 |
3Min. Isolation, λc, All Polarization States, ≤ 30 mW | dB | 35 | 45 |
Min. Extinction Ratio | dB | 20 | |
Min. Return Loss | dB | 50 | |
Min. Directivity | dB | 50 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Max. Tensile Load | N | 5 | |
Operating Temperature | ℃ | - 5 to + 50 | |
Storage Temperature | ℃ | - 40 to + 85 | |
Fiber Type | - | PM 980 Panda Fiber or HI 1060 Fiber for tap port | |
PM Panda Fiber for input & ouput ports | |||
1Output IL = - 10 * log(1 - Tap Ratio) + E.L, E.L will be 0.2 dB higher if tap port is HI 1060 Fiber.
2IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
3The isolation is related to the input power.Please inform us when you need high isolation and operate above 30 mW.
4The optical path is aligned to slow axis and fast axis is blocked.
