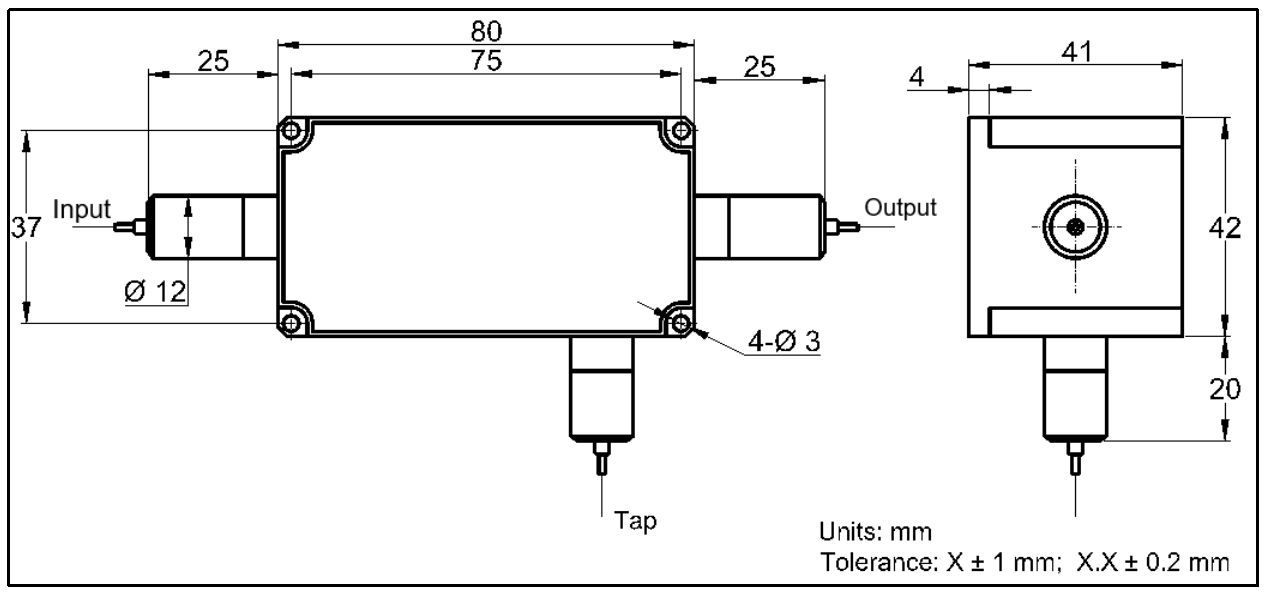

Package Dimensions

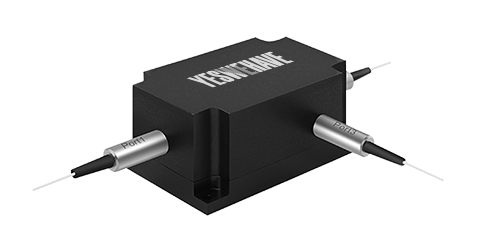

1030/1064 nm 20 W High Power Polarization Maintaining Tap Isolator
Overview
The High Power Polarization Maintaining Tap Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The Tap Isolator is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1030 or 1064 |
Operating Wavelength Range | nm | λc ± 10 |
Tap Ratio (Tap IL = - 10 × log (Tap Ratio) + E.L) | % | 0.1 ± 0.05, 1 ± 0.5, 2 ± 0.8, 5 ± 1.0, 10 ± 2.0 |
Min. Extinction Ratio | dB | 20 |
Min. Isolation, λc, All Polarization States | dB | 25 |
Typ. Excess Loss | dB | 0.8 |
Max. Excess Loss | dB | 1 |
Min. Return Loss | dB | 45/45 |
Max. Average Optical Power | W | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | Specified by ordering info |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1Output IL = - 10 × log (1-Tap Ratio) + E.L
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1030/1064 nm 20 W High Power Polarization Maintaining Tap Isolator
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1064 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 1/99 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked PM980 Fiber Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 PM 980 Fiber Continuous Wave - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Pulsed - Price: $825 - Stock: 1000
- Configuration: 1030 nm 20 W 10/90 None Bare Fiber 0.75 m Fast Axis Blocked Nufern FUD-3460 Nufern FUD-3460 Continuous Wave - Price: $825 - Stock: 1000
