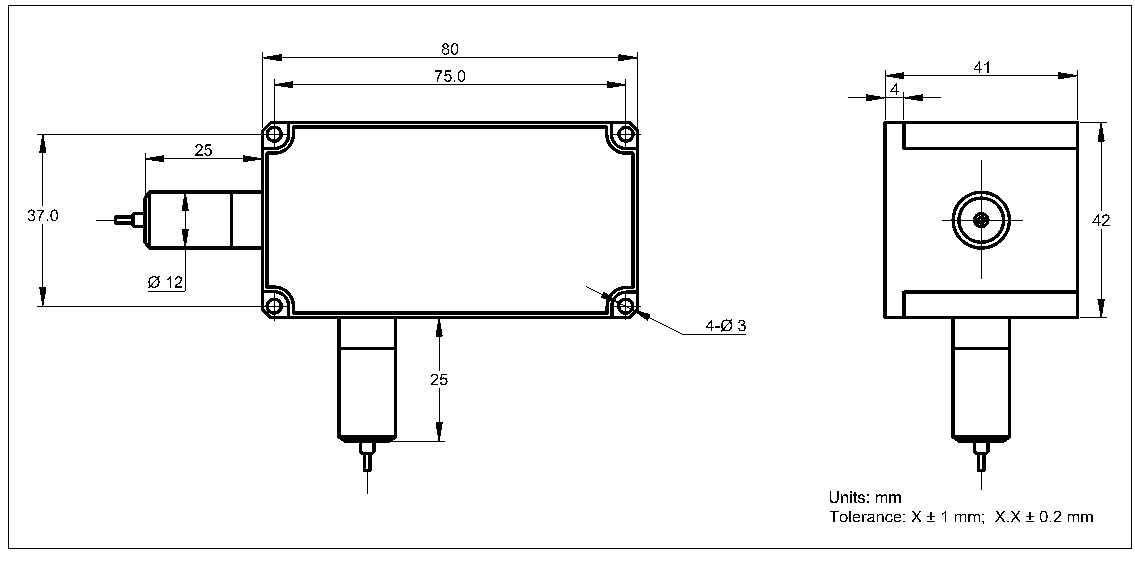

Package Dimensions

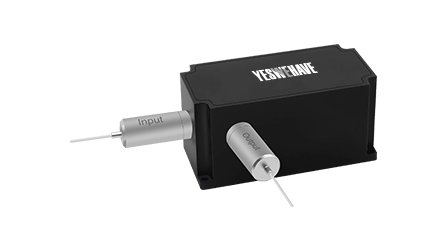

1064 nm 10 W High Power Dual Stage Polarization Maintaining Isolator
Overview
High Power Dual Stage Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. This optical isolator is ideal for amplifiers, fiber lasers and test instrument applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | λc ± 10 |
Min. Extinction Ratio | dB | 20 |
Typ. Insertion Loss, λc | dB | 0.8 |
Max. Insertion Loss, λc | dB | 1 |
Min. Isolation, λc | dB | 45 |
Min. Return Loss | dB | 45 |
Max. Optical Power | W | 10 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Fiber Type | - | PM980 Panda |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1064 nm 10 W High Power Dual Stage Polarization Maintaining Isolator
- Configuration: 1064 nm 5 W None 250 μm Bare Fiber 1.0 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 99
- Configuration: 1064 nm 5 W None 250 μm Bare Fiber 1.0 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
- Configuration: 1064 nm 5 W Specify 250 μm Bare Fiber 1.0 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 100
- Configuration: 1064 nm 5 W Specify 250 μm Bare Fiber 1.0 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
