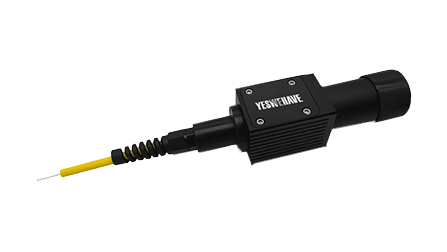

1064 nm 30 W High Power Polarization Maintaining Fiber to Free Space Isolator
The 1064 nm Fiber to Free Space High Power Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, and excellent environmental stability and reliability. This optical isolator is ideal for fiber lasers and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Typ. Peak Isolation | dB | 35 |
Min. Isolation, λc | dB | 28 |
Max. Insertion Loss | dB | 0.5 |
Min. Extinction Ratio | dB | 20 |
M2 Degradation | % | < 10 |
Beam Roundness | % | > 90 |
Min. Return Loss | dB | 50 |
Max. Average Optical Power | W | 30 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type (Input Port) | - | Specified by ordering info |
Fiber Type (Output Port) | - | Free Space |
Output Beam size (1/e^2) | mm | 7 ± 0.5 |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
