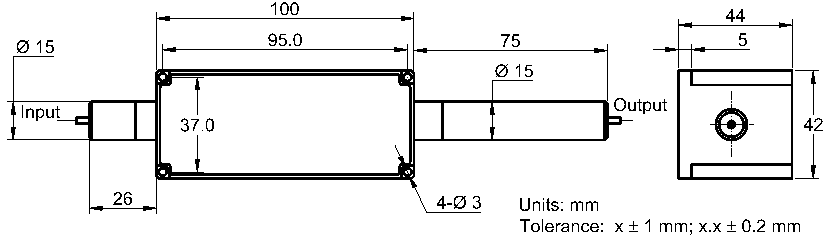

Package Dimensions

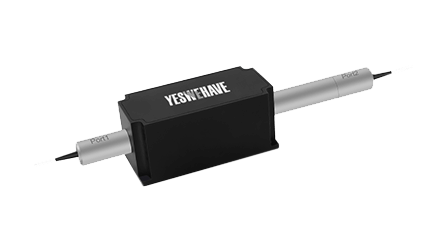

1064 nm 50 W High Power Polarization Maintaining Isolator
Overview
The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, and high extinction ratio. This fiber isolator is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | λc ± 10 |
Min. Isolation, λc | dB | 25 |
Typ. Insertion Loss | dB | 0.5 |
Max. Insertion Loss | dB | 0.8 |
Min. Extinction Ratio | dB | 20 |
Min. Return Loss | dB | 45 |
Max. Average Optical Power | W | 50 |
Max. Peak Power (Pulse Width,10 ns) | kW | 20 |
Max. Tensile Load | N | 5 |
Fiber Type | - | Specified by ordering info |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1064 nm 50 W High Power Polarization Maintaining Isolator
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Nufern FUD-3460 Pulsed - Price: $1158 - Stock: 100
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Nufern FUD-3460 Continuous Wave - Price: $1158 - Stock: 100
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Nufern PLMA-GDF-20/130-M Pulsed - Price: $1158 - Stock: 100
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Nufern PLMA-GDF-20/130-M Continuous Wave - Price: $1158 - Stock: 100
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Specify Pulsed - Price: $1158 - Stock: 100
- Configuration: 1064 nm 50 W None 250 Bare Fiber 1.0 m Fast Axis Blocked Specify Continuous Wave - Price: $1158 - Stock: 100
