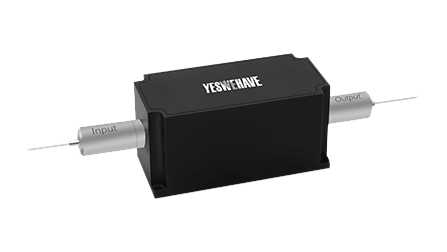

1064 nm 10/20 W High Power Polarization Maintaining Fiber Isolator
Overview
The 1064 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.
Parameter | Unit | Type A | Type B |
Center Wavelength (λc) | nm | 1064 | |
Operating Wavelength Range | nm | λc ± 10 | |
Typ. Peak Isolation | dB | 30 | |
Min. Isolation, λc | dB | 25 | |
Typ. Insertion Loss | dB | 0.8 | |
Max. Insertion Loss | dB | 1 | |
Min. Extinction Ratio | dB | 20 | |
Min. Return Loss (Input/Output) | dB | 45/45 | |
Max. Average Optical Power | W | 10 | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 | |
Max. Tensile Load | N | 5 | |
Fiber Type | - | PM 980 Panda | |
Operating Temperature | ℃ | + 10 to + 50 | |
Storage Temperature | ℃ | 0 to + 60 | |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1064 nm 10/20 W High Power Polarization Maintaining Fiber Isolator
- Configuration: 1064 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $695 - Stock: 100
- Configuration: 1064 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $695 - Stock: 100
- Configuration: 1064 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Pulsed - Price: $695 - Stock: 100
- Configuration: 1064 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Continuous Wave - Price: $695 - Stock: 100
- Configuration: 1064 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $695 - Stock: 100
- Configuration: 1064 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $695 - Stock: 100
- Configuration: 1064 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Pulsed - Price: $695 - Stock: 100
- Configuration: 1064 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Both Axes Working PM 980 Panda Fiber Continuous Wave - Price: $695 - Stock: 100
