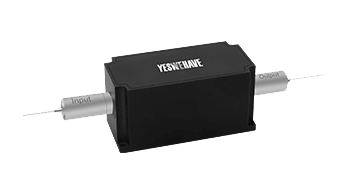

850 nm 500 mW High Power Polarization Maintaining Fiber Isolator
Overview
The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Operating Wavelength (λop) | nm | 850 |
Typ. Insertion Loss | dB | 1.3 |
Max. Insertion Loss, | dB | 1.6 |
Typ. Peak Isolation | dB | 26 |
Min. Isolation, λc | dB | 22 |
Min. Extinction Ratio | dB | 18 |
Min. Return Loss | dB | 45 |
Max. Optical Power (Continuous Wave) | mW | 500 |
Fiber Type | - | PM 850 Panda |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 850 nm 500 mW High Power Polarization Maintaining Fiber Isolator
- Configuration: 850 - 850 nm 2 - FC/APC B - 250 um Bare Fiber Q - 0.75 m F - Fast Axis Blocked - Price: $10000 - Stock: 100
- Configuration: 850 - 850 nm 2 - FC/APC B - 250 um Bare Fiber Q - 0.75 m B - Both Axis Working - Price: $10000 - Stock: 100
- Configuration: 850 - 850 nm 2 - FC/APC L - 900 um Loose Tube Q - 0.75 m F - Fast Axis Blocked - Price: $10000 - Stock: 100
- Configuration: 850 - 850 nm 2 - FC/APC L - 900 um Loose Tube Q - 0.75 m B - Both Axis Working - Price: $10000 - Stock: 100
