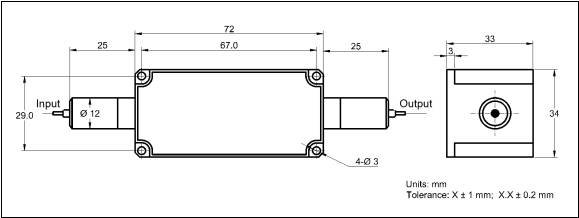

Package Dimensions

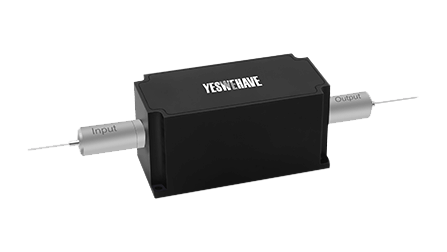

980 nm 20 W High Power Polarization Maintaining Fiber Isolator
Overview
The 980 nm High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 980 |
Operating Wavelength Range | nm | λc ± 10 |
Typ. Peak Isolation | dB | 30 |
Min. Isolation, λc, @ All Polarization States | dB | 25 |
Typ. Insertion Loss | dB | 0.8 |
Max. Insertion Loss | dB | 1 |
Min. Return Loss (Input/Output) | dB | 45/45 |
Min. Extinction Ratio | dB | 20 |
Max. Average Optical Power | W | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | PM 980 Fiber |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 980 nm 20 W High Power Polarization Maintaining Fiber Isolator
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Nufern-FUD-3460 Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Nufern-FUD-3460 Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Nufern-PLMA-GDF-20/130-M Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Nufern-PLMA-GDF-20/130-M Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working Nufern-FUD-3460 Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working Nufern-FUD-3460 Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working Nufern-PLMA-GDF-20/130-M Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working Nufern-PLMA-GDF-20/130-M Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked Nufern-FUD-3460 Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked Nufern-FUD-3460 Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked Nufern-PLMA-GDF-20/130-M Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Fast Axis Blocked Nufern-PLMA-GDF-20/130-M Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working PM 980 Panda Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working Nufern-FUD-3460 Fiber Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working Nufern-FUD-3460 Fiber Continuous Wave - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working Nufern-PLMA-GDF-20/130-M Pulse Application - Price: $990 - Stock: 1000
- Configuration: 980 nm 20 W None 900 μm LooseTube 0.75 m Both Axis Working Nufern-PLMA-GDF-20/130-M Continuous Wave - Price: $990 - Stock: 1000
