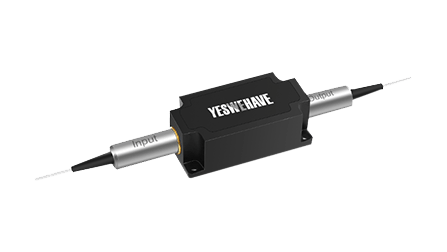

1064 nm 2 W High Power Polarization Maintaining Isolator
Overview
The Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. This optical isolator is ideal for amplifiers, fiber lasers and test instrument applications.
Unit | Value | |
Center Wavelength (λc) | nm | 1064 |
Typ. Peak Isolation | dB | |
Min. Isolation, λc | dB | 28 |
Typ. Insertion Loss | dB | 1.7 |
Max. Insertion Loss and Input power @ 300 mW | dB | 2.0 |
Max. Insertion Loss and Input power @ 1 W | dB | 2.5 |
Max. Insertion Loss and Input power @ 2 W | dB | 3.0 |
Min. Extinction Ratio | 20 | |
Min. Return Loss (Input/Output) | dB | 50/50 |
Max. Average Optical Power | W | |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2The optical power handling capability will be max 1W when the isolator is terminated with connectors.
3All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1064 nm 2 W High Power Polarization Maintaining Isolator
- Configuration: 1064 nm 2 W FC/APC 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W FC/APC 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W FC/APC 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W FC/APC 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W Specify 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W Specify 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W Specify 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $353 - Stock: 100
- Configuration: 1064 nm 2 W Specify 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $353 - Stock: 100
