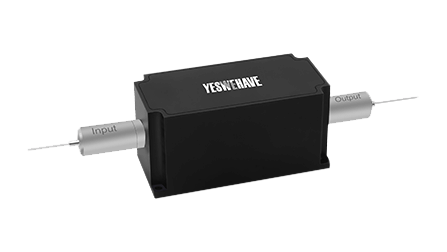

1064 nm 10 W High Power Polarization Maintaining Fiber Isolator
Overview
The 1064 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.
Unit | Value | |
Center Wavelength (λc) | 1064 | |
Operating Wavelength Range | nm | |
Typ. Peak Isolation | dB | 30 |
Min. Isolation, λc, @ All Polarization States | dB | 25 |
Typ. Insertion Loss | dB | 0.8 |
Max. Insertion Loss | dB | 1 |
Min. Extinction Ratio | dB | 45/45 |
Min. Return Loss (Input/Output) | 20 | |
Max. Average Optical Power | W | 10 |
Max. Peak Power (Pulse Width,10 ns) | kW | |
Max. Tensile Load | N | 5 |
Fiber Type | - | PM980 Panda |
Operating Temperature | ||
Storage Temperature | ℃ | 0 to + 60 |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1064 nm 10 W High Power Polarization Maintaining Fiber Isolator
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Specify Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked Specify Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m B - Both Axis Working PM980 Panda Fiber Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m B - Both Axis Working PM980 Panda Fiber Continuous Wave - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m B - Both Axis Working Specify Pulsed - Price: $561 - Stock: 100
- Configuration: 1064 nm 10 W None 250 μm Bare Fiber 0.75 m B - Both Axis Working Specify Continuous Wave - Price: $561 - Stock: 100
