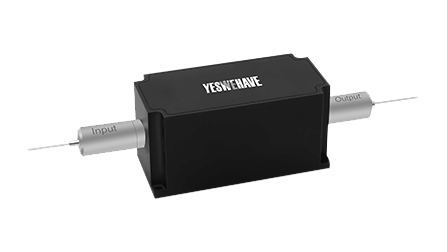

1030 nm 10/20 W High Power Polarization Maintaining Isolator
Overview
The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Type A | Type B |
Center Wavelength (λc) | nm | 1030 | |
Operating Wavelength Range | nm | λc ± 10 | |
Typ. Peak Isolation | dB | 30 | |
Min. Isolation, λc, @ All Polarization States | dB | 25 | |
Typ. Insertion Loss | dB | 0.8 | |
Max. Insertion Loss | dB | 1 | |
Min. Return Loss (Input/Output) | dB | 45/45 | |
Min. Extinction Ratio | dB | 20 | |
Max. Average Optical Power | W | 10 | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 | |
Max. Tensile Load | N | 5 | |
Fiber Type | - | PM 980 Panda | |
Operating Temperature | ℃ | + 10 to + 50 | |
Storage Temperature | ℃ | 0 to + 60 | |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1030 nm 10/20 W High Power Polarization Maintaining Isolator
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 98
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 100
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $738 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $738 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $738 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $738 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $638 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $638 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Pulsed - Price: $738 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Fast Axis Blocked PM 980 Panda Fiber Continuous Wave - Price: $738 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Pulsed - Price: $738 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 0.75 m Both Axis Working PM 980 Panda Fiber Continuous Wave - Price: $738 - Stock: 100
