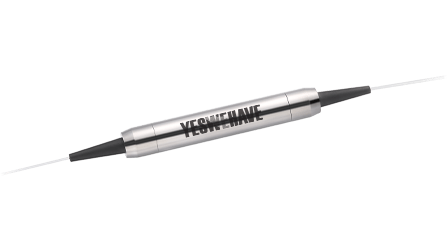

1310/1550 nm 300 mW Polarization Maintaining Optical Circulator
Overview
The PM Circulator 300 mW 1310/1550 nm is engineered for high-performance optical systems, delivering precision in polarisation-maintaining applications. It operates at 1310 nm and 1550 nm wavelengths with a power handling capacity of up to 300 mW. Featuring low insertion loss, high isolation, and exceptional extinction ratios, it is an ideal choice for systems requiring reliable signal routing and robust polarisation control.
Parameter | Unit | Values |
Center Wavelength | nm | 1310 or 1550 |
Operating Wavelength | nm | λc ± 30 |
Max. Insertion Loss, P1 to P2, P2 to P3, λc, 23 ℃ | dB | 0.9 |
Typ. Peak Isolation, λc, 23 ℃ | dB | 45 |
Min. Isolation, λc, 23 ℃ | dB | 40 |
Min. Extinction Ratio, 23℃ | ps | 22 |
Min. Crosstalk | dB | 50 |
Min. Return Loss | dB | 50 |
Max. Optical Power (Continuous Wave) | mW | 300 |
Fiber Type | - | Corning PM1550 Panda Fiber |
Max. Tensile Load | N | 5 |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1310/1550 nm 300 mW Polarization Maintaining Optical Circulator
- Configuration: 1550 nm FC/APC 250 μm Bare Fiber 1 m Fast Axis Blocked - Price: $250 - Stock: 88
- Configuration: 1550 nm FC/APC 900 μm Loose Tube 1 m Fast Axis Blocked - Price: $250 - Stock: 100
- Configuration: 1550 nm None 250 μm Bare Fiber 1 m Fast Axis Blocked - Price: $250 - Stock: 94
- Configuration: 1550 nm None 900 μm Loose Tube 1 m Fast Axis Blocked - Price: $250 - Stock: 100
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber 1 m Fast Axis Blocked - Price: $250 - Stock: 99
- Configuration: 1310 nm FC/APC 900 μm Loose Tube 1 m Fast Axis Blocked - Price: $250 - Stock: 100
- Configuration: 1310 nm None 250 μm Bare Fiber 1 m Fast Axis Blocked - Price: $250 - Stock: 100
- Configuration: 1310 nm None 900 μm Loose Tube 1 m Fast Axis Blocked - Price: $250 - Stock: 98
