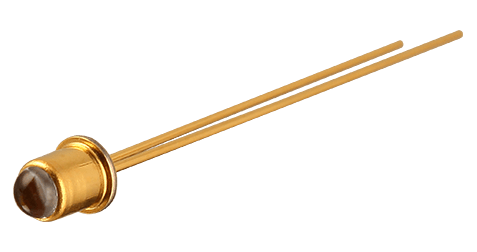

PD45-TO25-BL-2pin
This high-speed photodiode features a low-capacitance PIN structure, ensuring excellent frequency response and stability. With low dark current and low-voltage operation, it delivers reliable performance in demanding environments. Ideal for high-speed optical communication systems such as 10 Gigabit Ethernet, 8G Fiber Channel, and SONET/SDH OC-192 applications.
Absolute Maximum Ratings | ||||||
Parameters | Unit | Min. | Typ. | Max. | Test Condition | |
Reverse Voltage | V | - | - | 20 | - | |
Forward Current | mA | - | - | 10 | - | |
Max. Optical Input Power | mW | - | - | 3 | - | |
Operating Temperature | ℃ | - 40 | - | + 85 | - | |
Storage Temperature | ℃ | - 40 | - | + 85 | - | |
Lead Solder Temperature | ℃ | - | - | 260 | - | |
Lead Solder Time | s | - | - | 10 | - | |
Characteristics: (Ta=25℃ unless otherwise noted) | ||||||
Active Diameter | µm | - | 45 | - | - | |
Bandwidth | GHz | 8 | 10 | - | VR = 5 V | |
Responsivity | @1310 nm | A/W | 0.75 | - | - | VR= 5 V |
@1550 nm | A/W | 0.8 | 0.85 | - | VR = 5 V | |
Dark Current | nA | - | 1 | 5 | VR = 5 V | |
Chip Capacitance | pF | - | 0.11 | 0.13 | VR =5 V, f =1MHz | |
Optical Spectrum Response Range | nm | 1100 | - | 1650 | - | |
Operating Voltage | V | - | - 5 | - | - | |
