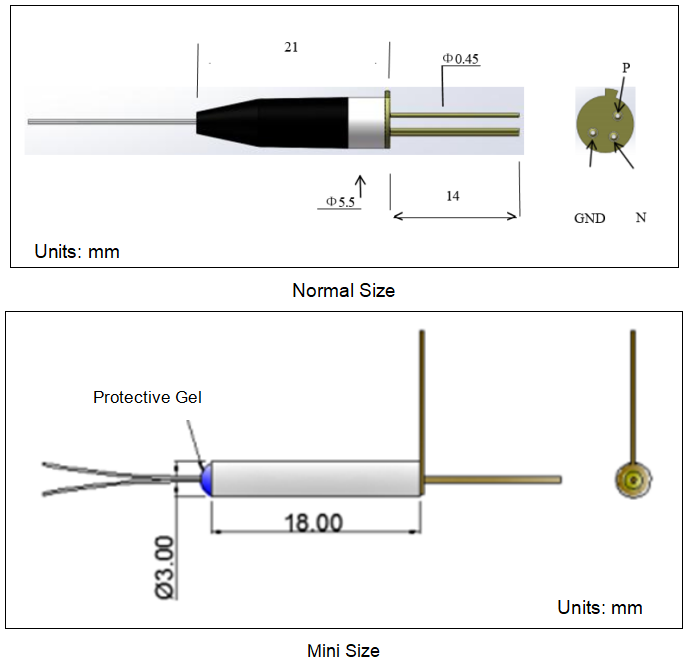

Package Dimensions
Tap Photodetector
The Tap Photodetector (TAP PD) integrates a high-performance In GaAs/In PIN photodiode in a compact package. With its optimized optical design, it delivers high responsivity, low dark current, and excellent reliability. Its small size and compact structure make it easy to integrate into high-density optical communication systems.
Parameters | Unit | Min. | Typ. | Max. |
Operating Wavelength | nm | 1260 | - | 1620 |
Tap Ratio | % | 1 | 2 | 5 |
Responsivity | mA/W | 8 - 12 | 16 - 24 | 40 - 60 |
Junction Capacitance | pF | 0.4 | - | 0.6 |
Reflection Loss (RIL) | dB | 0.3 | 0.35 | 0.5 |
Temperature Dependent Loss (TDL) | dB/℃ | - | - | 0.1 |
Polarization Dependent Loss (PDL) | dB | - | - | 0.1 |
Dark Current | nA | - | - | 1 |
Return Loss | dB | -40 | - | -50 |
Storage Temperature | ℃ | -40 | 16 | 85 |
Operating Temperature | ℃ | 0 | - | 70 |
Soldering Temperature/Time | ℃/Sec | - | -5.0 | 260/10 |
