Overview
Key Features
Applications

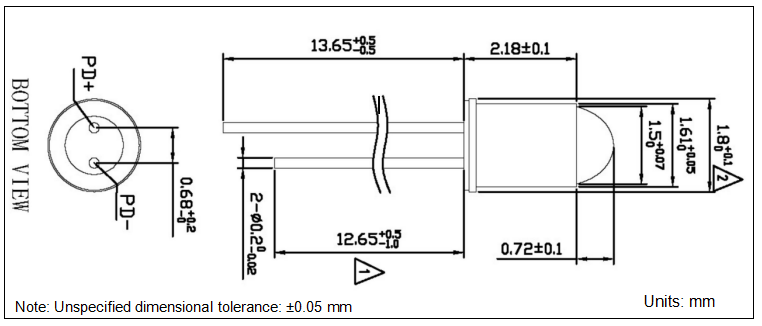

Package Dimensions

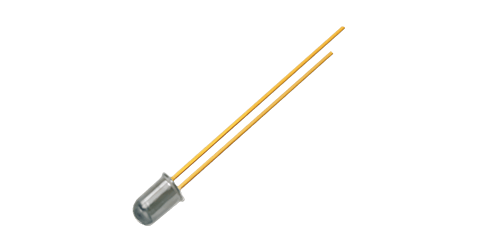

PD80-TO18-2 PIN
The Photodiode delivers high speed, low capacitance, and excellent stability, ideal for 10 Gb Ethernet, 8 G Fiber Channel, and SONET/SDH OC-192 applications.
Absolute Maximum Ratings | ||||||
Parameters | Unit | Min. | Typ. | Max. | Test Condition | |
Input Optical Power | mW | - | - | 10 | - | |
Reverse Voltage | V | - | - | 20 | - | |
Forward Current | mA | - | - | 10 | - | |
Operating Temperature | ℃ | - 40 | - | +85 | - | |
Storage Temperature | ℃ | - 40 | - | +85 | - | |
Lead Solder Temperature | ℃ | - | - | 260 | - | |
Lead Solder Time | s | - | - | 10 | - | |
Electrical / Optical Characteristics (VR=5 V, Ta=25℃) | ||||||
Active Diameter | μm | - | 80 | - | - | |
Detection Range | nm | 1100 | 1610 | - | ||
Responsivity | @1310 nm | A/W | 0.80 | 0.90 | - | VR = 5 V |
@1550 nm | pA | 0.90 | 0.95 | - | VR = 5 V | |
Dark Current | pF | - | 30 | 160 | VR = 5 V | |
Chip Capacitance | GHz | - | 0.65 | 0.80 | VR = 5 V | |
Bandwidth | V | 1.0 | 2.0 | - | VR = 5 V | |
Operating Voltage | V | - | -5 | - | - | |
ESD (HBM) | μm | 300 | - | - | - | |
