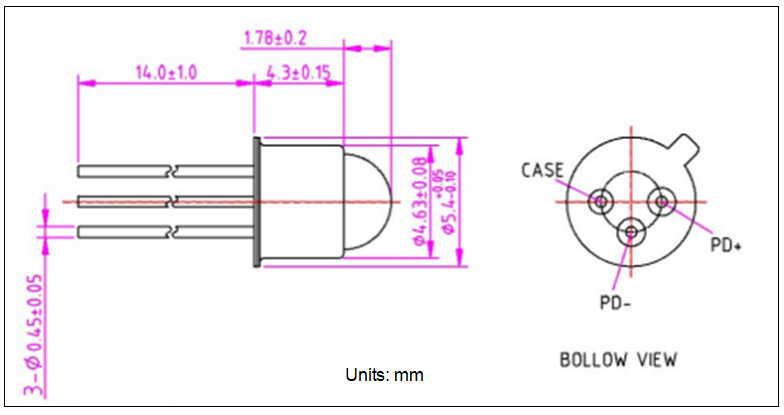

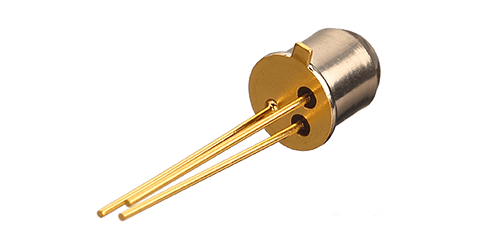

PD500-TO46-BL-3 PIN
This high-responsivity photodiode features low dark current and a 500 μm round optical window, responding effectively to C- and L-band wavelengths up to 1700 nm. Optimized for methane (CH₄) detection at 1654 nm, it ensures stable performance in low-temperature environments — ideal for NIR sensing and monitoring instrument.
Absolute Maximum Ratings | ||||||
Parameters | Unit | Min. | Typ. | Max. | Test Condition | |
Reverse Voltage | V | - | - | 20 | - | |
Forward Current | mA | - | - | 10 | - | |
Max. Optical Input Power | mW | - | - | 15 | - | |
Operating Temperature | ℃ | - 40 | - | +85 | - | |
Storage Temperature | ℃ | - 40 | - | +125 | - | |
Lead Solder Temperature | ℃ | - | - | 320 | - | |
Lead Solder Time | s | - | - | 5 | - | |
Characteristics (VR = 5 V, Ta=25℃) | ||||||
Active Diameter | µm | - | 500 | - | - | |
Detection Range | A/W | 0.85 | 0.90 | - | VR = 5 V | |
Responsivity | @1310 nm | A/W | 0.85 | - | - | VR = 5 V |
@1550 nm | A/W | 0.85 | - | - | VR = 5 V | |
@1654 nm | nA | - | 0.5 | 2 | VR = 5 V | |
Dark Current | pF | - | 16 | 25 | VR = 5 V, f =1 MHz | |
Chip Capacitance | nm | 1100 | - | 1700 | - | |
Optical Spectrum Response Range | V | - | -5.0 | - | - | |
Operating Voltage | V | -20 | -38 | -60 | -10 uA | |
Breakdown | V | 0.4 | 0.5 | 1 | 1 mA | |
