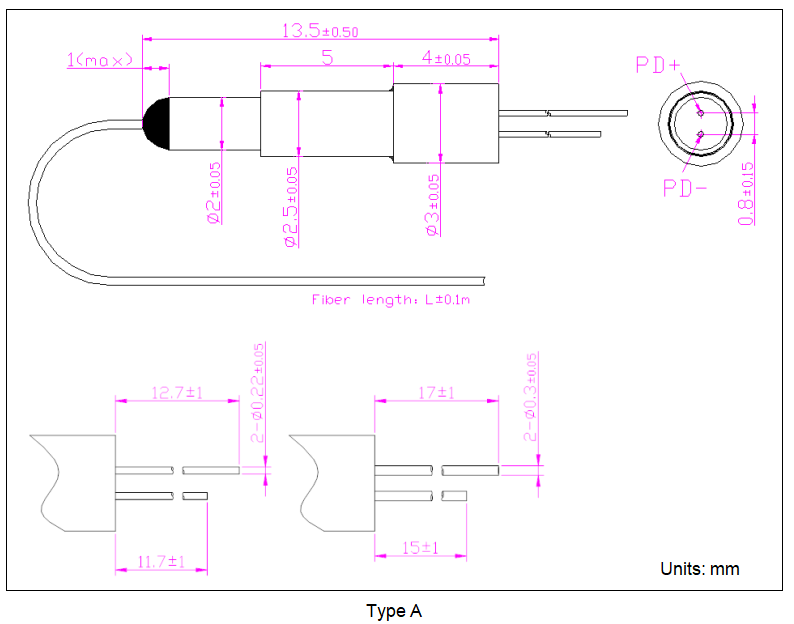

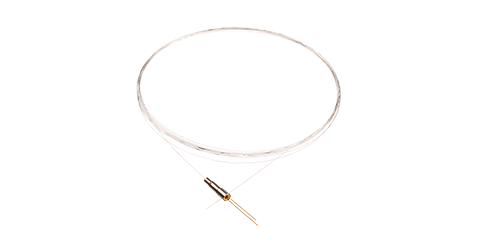

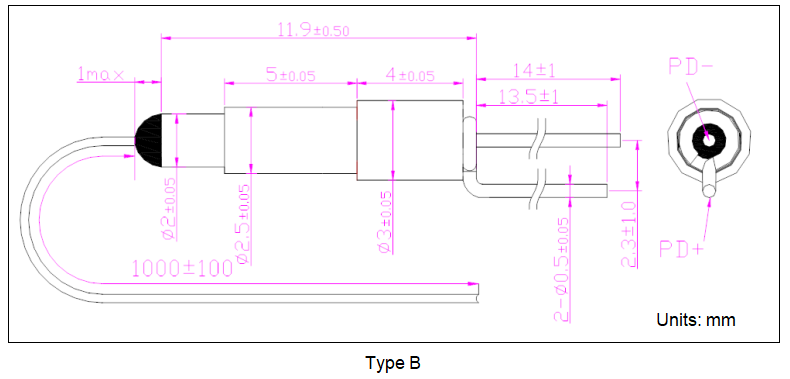

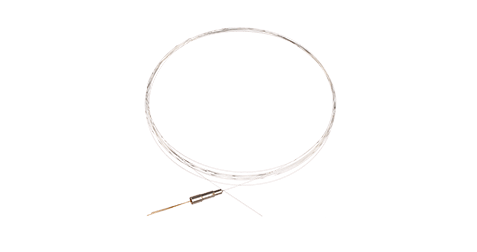

Mini PD80 with Pigtail
The Mini PD80 with pigtail is a high-speed, low-capacitance photodiode with a mini-Pin structure and low dark current, offering excellent stability and reliable low-voltage operation, ideal for optical fiber communication up to 1.0 GHz, fiber power monitoring, and spectral measurements.
Absolute Maximum Ratings | |||||
Parameters | Unit | Min. | Max. | ||
PD Forward Current | mA | - | 10 | ||
PD Reverse Voltage | V | - | 20 | ||
Input Optical Power | dBm | - | 3 | ||
Operating Temperature | ℃ | -40 | 85 | ||
Storage Temperature | ℃ | -40 | 85 | ||
Lead Solder Temperature | ℃ | - | 260 | ||
Lead Soldering Time | s | - | 10 | ||
Optical and Electrical Parameters (Ta=25℃) | |||||
Parameters | Unit | Min. | Typ. | Max. | Test Condition |
Bandwidth | GHz | 1.0 | - | - | Vr = 5 V,- 3 dB |
Responsivity | A/W | 0.85 | 0.90 | - | 1550 nm, Vr = 5 V |
Dark Current | nA | - | - | 1 | Vr = 5 V |
Total Capacitance | pF | - | - | 3.0 | Vr = 5 V |
Optical Return Loss | dB | - | - | -40 | 1550 nm |
Fiber Pigtail Parameters | |||||
Fiber Type | - | Corning SMF-28e (Type ITU-T Ultra) | Corning ZBL | ||
Fiber Bend Radius | mm | ≥15 | ≥10 | ||
Fiber Length | m | L ± 0.1 m | |||
Fiber Color | - | Natural or Black | |||
Connector Type | - | None | |||
