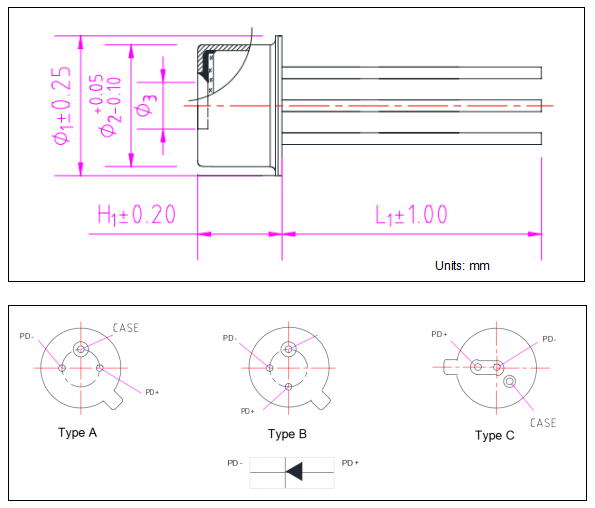

Package Dimensions
PD60-TO46-FW&BL Series
Overview

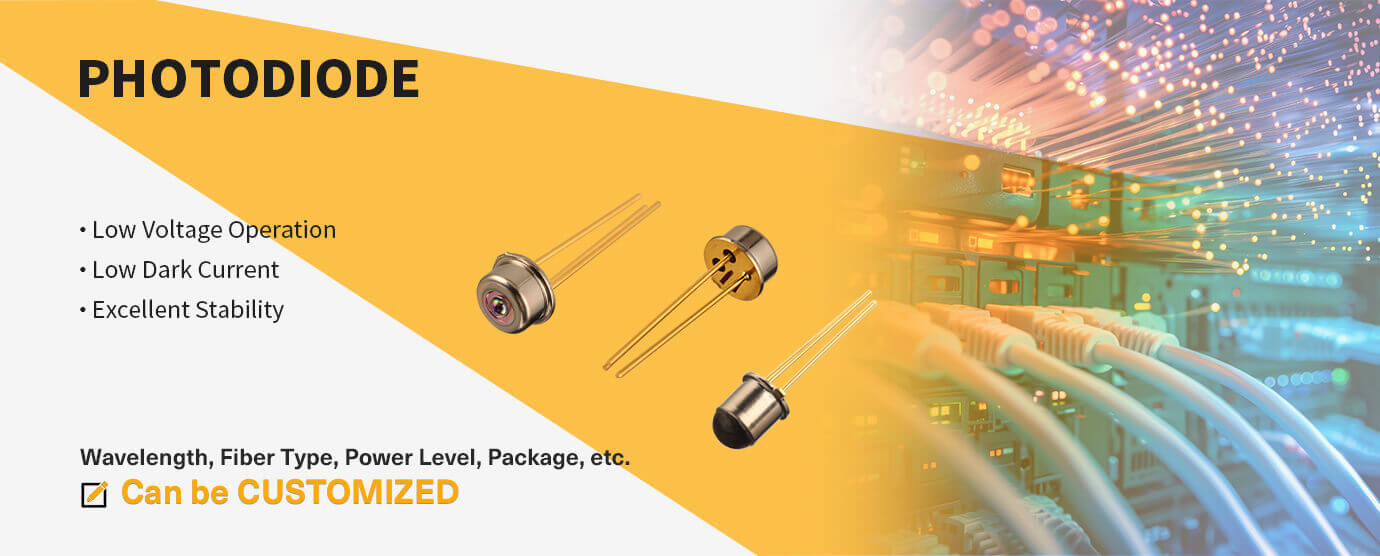

The Photodiode features low capacitance, high speed, and excellent stability for optical communication, LAN, and OTDR. It offers FW (Flat Window) and BL (Ball Lens) options to meet different coupling needs.
Absolute Maximum Ratings | ||||||
Parameters | Unit | Min. | Typ. | Max. | Test Condition | |
Reverse Voltage | V | - | - | 20 | - | |
Forward Current | mA | - | - | 5 | - | |
Max. Optical Input Power | mW | - | - | 5 | - | |
Operating Temperature | ℃ | - 40 | - | +85 | - | |
Storage Temperature | ℃ | - 40 | - | +85 | - | |
Lead Solder Temperature | ℃ | - | - | 260 | - | |
Lead Solder Time | s | - | - | 10 | - | |
Characteristics: (Ta=25℃ unless otherwise noted) | ||||||
Active Diameter | µm | - | 60 | - | - | |
Bandwidth | GHz | 3 | - | - | VR=5V | |
Responsivity | @1310 nm | A/W | 0.8 | 0.9 | - | VR=5V |
@1550 nm | A/W | 0.9 | 0.95 | - | VR=5V | |
Dark Current | nA | - | 0.2 | 1.0 | VR=5V | |
Chip Capacitance | pF | - | 0.45 | 0.5 | VR=5V, f =1MHz | |
Optical Spectrum Response Range | nm | 1100 | - | 1620 | - | |
Operating Voltage | V | - | - 5 | - | - | |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for PD60-TO46-FW&BL Series
- Configuration: TO46 Flat Window 3 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 Flat Window 3 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 Flat Window 3 pins Type C - Price: $10000 - Stock: 1000
- Configuration: TO46 Flat Window 4 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 Flat Window 4 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 Flat Window 4 pins Type C - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 3 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 3 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 3 pins Type C - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 4 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 4 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 High Ball Lens 4 pins Type C - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 3 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 3 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 3 pins Type C - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 4 pins Type A - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 4 pins Type B - Price: $10000 - Stock: 1000
- Configuration: TO46 Short Ball Lens 4 pins Type C - Price: $10000 - Stock: 1000
