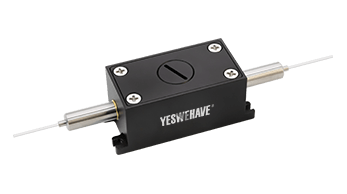

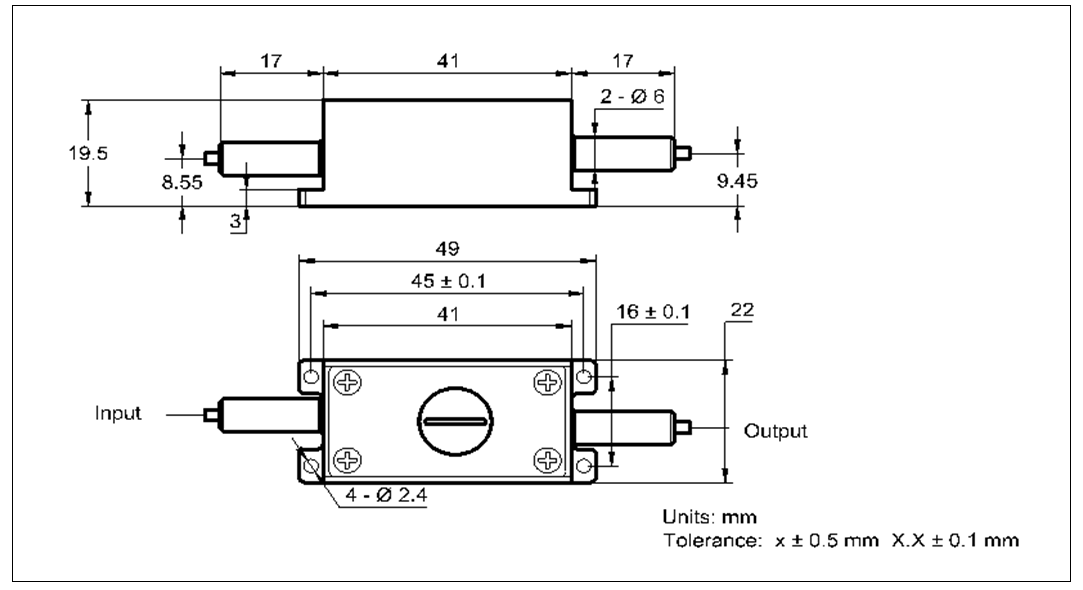

Mini High Power Polarization Insensitive Isolator with Bandpass Filter
The Mini High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | λc ± 10 |
Typ. Isolation, λc, @23 ℃ | dB | 30 |
Typ. Insertion Loss, λc, @23 ℃ | dB | 0.65 |
Max. Insertion Loss, λc, @23 ℃ | dB | 1 |
Min. Return Loss (Input/Output) | dB | 50/50 |
Filter Center Wavelength | nm | 1064 |
Filter Pass Band, @0.5dB | nm | 20 |
Wavelength Suppression (900 - 1048 & 1080 - 1150 nm) | dB | 25 |
660 nm Transmission | % | 20 |
Max. Average Optical Power | W | 10 |
Max. Peak Power for ns pulse | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | Specified by ordering info |
Operating Temperature | ℃ | +5 to +50 |
Storage Temperature | ℃ | -20 to +65 |
1IL is 0.5 dB higher, and RL is 5 dB lower for each connector added.
2 The optical power handling capability will be max 1W when the isolator is terminated with connectors.
