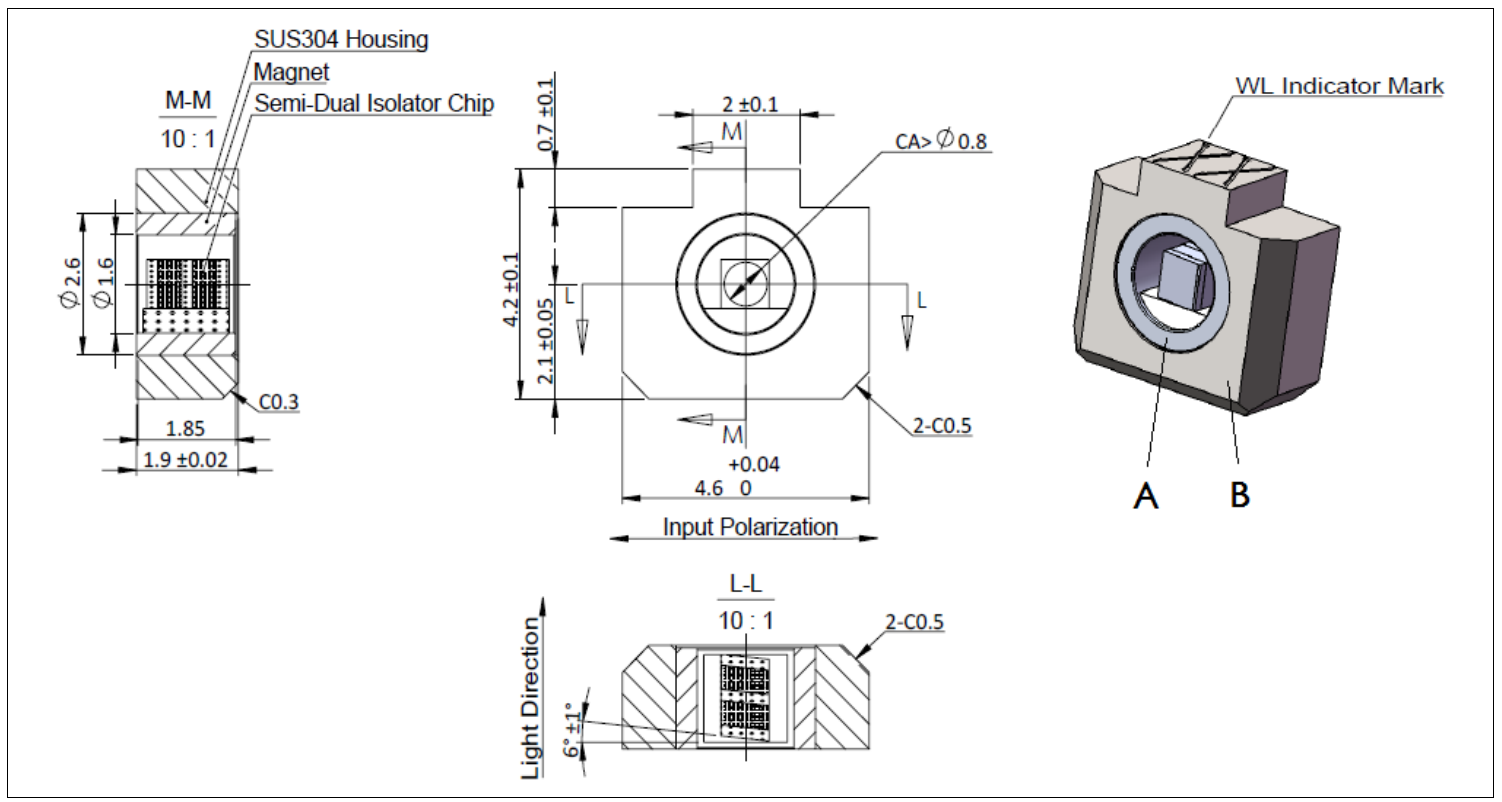

Package Dimensions

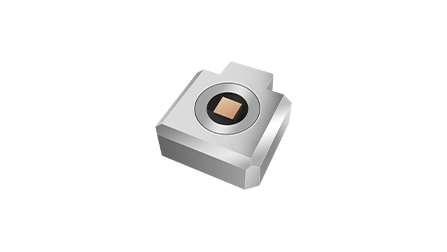

1310/1550 nm 300 mW Free Space Isolator Epoxy
Overview
The Free Space Isolator Epoxy is designed for integration within laser diode package to prevent back reflection. The high isolation, low insertion loss and large aperture features make the optical isolator epoxy flexible to fit with different diode laser packaging requirements.
Parameter | Unit | Value | |
Stage | - | Single Stage | Dual Stage |
Center Wavelength (λc) | nm | ||
Typ. Insertion Loss | dB | 0.12 | 0.20 |
Max. Insertion Loss | dB | 0.30 | 0.50 |
Peak Isolation | dB | 40 | 55 |
Min. Isolation, 23 ℃ | dB | 30 | 40 |
Clear Aperture | 0.4 - 0.9 | ||
Max. Optical Power (Continuous Wave) | mW | 300 | |
Polarization Plane of Input | - | Indicated in package diagram | |
Tilt Angle of Input Polarization | degree | ||
Operating Temperature | ℃ | 0 to + 60 | |
Storage Temperature | ℃ | ||
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1310/1550 nm 300 mW Free Space Isolator Epoxy
- Configuration: Single Stage 1310 nm Ø 0.9 mm Ø 2.6 × Ø 1.6 × 1.85 mm Magnet, No Housing (Refer to A) - Price: $105 - Stock: 1000
- Configuration: Single Stage 1310 nm Ø 0.9 mm Ø 2.2 × Ø 1.6 × 1.7 mm Magnet, No Housing - Price: $105 - Stock: 1000
- Configuration: Single Stage 1310 nm Ø 0.9 mm 4.6 × 1.9 × 4.2 - Ø 2.6 mm Housing (Refer to B) - Price: $105 - Stock: 1000
- Configuration: Single Stage 1310 nm Ø 0.9 mm 3.5 × 1.7 × 3.85 - Ø 2.2 mm Housing - Price: $105 - Stock: 1000
- Configuration: Single Stage 1550 nm Ø 0.9 mm Ø 2.6 × Ø 1.6 × 1.85 mm Magnet, No Housing (Refer to A) - Price: $105 - Stock: 1000
- Configuration: Single Stage 1550 nm Ø 0.9 mm Ø 2.2 × Ø 1.6 × 1.7 mm Magnet, No Housing - Price: $105 - Stock: 1000
- Configuration: Single Stage 1550 nm Ø 0.9 mm 4.6 × 1.9 × 4.2 - Ø 2.6 mm Housing (Refer to B) - Price: $105 - Stock: 1000
- Configuration: Single Stage 1550 nm Ø 0.9 mm 3.5 × 1.7 × 3.85 - Ø 2.2 mm Housing - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1310 nm Ø 0.9 mm Ø 2.6 × Ø 1.6 × 1.85 mm Magnet, No Housing (Refer to A) - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1310 nm Ø 0.9 mm Ø 2.2 × Ø 1.6 × 1.7 mm Magnet, No Housing - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1310 nm Ø 0.9 mm 4.6 × 1.9 × 4.2 - Ø 2.6 mm Housing (Refer to B) - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1310 nm Ø 0.9 mm 3.5 × 1.7 × 3.85 - Ø 2.2 mm Housing - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1550 nm Ø 0.9 mm Ø 2.6 × Ø 1.6 × 1.85 mm Magnet, No Housing (Refer to A) - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1550 nm Ø 0.9 mm Ø 2.2 × Ø 1.6 × 1.7 mm Magnet, No Housing - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1550 nm Ø 0.9 mm 4.6 × 1.9 × 4.2 - Ø 2.6 mm Housing (Refer to B) - Price: $105 - Stock: 1000
- Configuration: Semi-Double Stage 1550 nm Ø 0.9 mm 3.5 × 1.7 × 3.85 - Ø 2.2 mm Housing - Price: $105 - Stock: 1000
