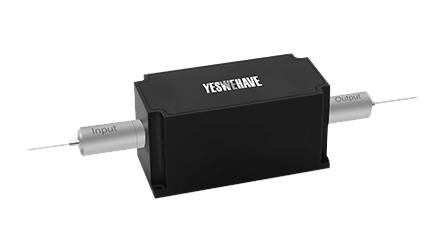

830 nm 500 mW High Power Polarization Insensitive Isolator
The 830 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value | |
Grade | - | Grade P | Grade A |
Center Wavelength (λc) | nm | 830 or specify | |
Max. Polarization Dependent Loss | dB | 0.15 | 0.2 |
Min. Isolation, λc, @ All Polarization States | dB | 22 | 20 |
Typ. Insertion Loss | dB | 1.3 | 1.6 |
Max. Insertion Loss | dB | 1.6 | 1.8 |
Min. Return Loss (Input/Output) | dB | 50/50 | 45/45 |
Max. Optical Power (Continuous Wave) | mW | 500 | |
Max. Tensile Load | N | 5 | |
Fiber Type | - | HI780 SM | |
Operating Temperature | ℃ | + 10 to + 50 | |
Storage Temperature | ℃ | 0 to + 60 | |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
