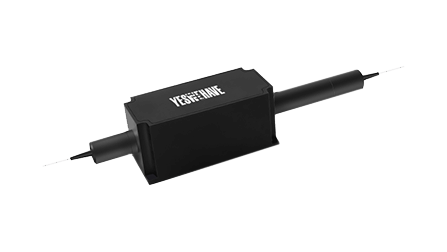

1550 nm 20 W High Power Polarization Insensitive Isolator
Overview
The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The optical isolator is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1550 |
Max. Polarization Dependent Loss | dB | 0.15 |
Typ. Peak Isolation | dB | 35 |
Min. Isolation, λc, All Polarization States | dB | 28 |
Typ. Insertion Loss | dB | 0.35 |
Max. Insertion Loss, λc ± 20 nm | dB | 0.5 |
Min. Return Loss (Input/Output) | dB | 50/50 |
Max. Optical Power | W | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | SMF-28 Fiber |
Operating Temperature | ℃ | 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1IL is 0.3 dB higher, RL is 5 dB lower and Optical Power is 1 W for each connector added.
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1550 nm 20 W High Power Polarization Insensitive Isolator
- Configuration: 1550 nm 20 W FC/APC 250 μm Bare Fiber 1.0 m Pulse Application - Price: $768 - Stock: 100
- Configuration: 1550 nm 20 W FC/APC 250 μm Bare Fiber 1.0 m Continuous Wave - Price: $768 - Stock: 100
- Configuration: 1550 nm 20 W Specify 250 μm Bare Fiber 1.0 m Continuous Wave - Price: $768 - Stock: 100
- Configuration: 1550 nm 20 W Specify 250 μm Bare Fiber 1.0 m Pulse Application - Price: $768 - Stock: 100
