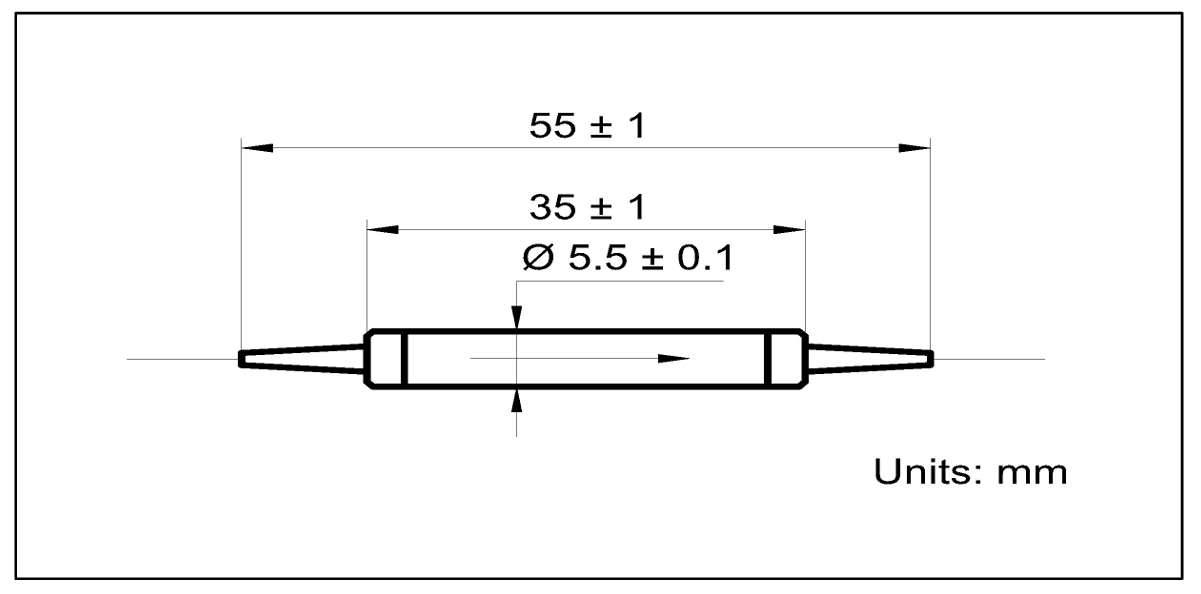

Package Dimensions
In-Line Polarizer
Overview
The In-Line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.
Parameter | Unit | Value | ||||
Center Wavelength, λc | nm | 1550 | 1310 | 1064 | 980 | 850 |
Operating Wavelength Range | nm | ±50 | ±50 | ±30 | ±10 | ±10 |
Typ. Insertion Loss at 23℃ | dB | 0.3 | 0.3 | 0.4 | 0.7 | 0.8 |
Max. Insertion Loss at 23℃ | dB | 0.5 | 0.5 | 0.6 | 0.9 | 1.0 |
Min. Return Loss | dB | 50 | 50 | 50 | 50 | 50 |
Typ. Extinction Ratio at 23℃ | dB | 30 | 30 | 30 | 28 | 28 |
Min. Extinction Ratio at 23℃ | dB | 28 | 28 | 28 | 25 | 25 |
Fiber Type for Input & Output | - | SM-SM or SM-PM or PM to PM | ||||
Max. Optical Power (CW) | mW | 300 | ||||
Max. Tensile Load | N | 5 | ||||
Operating Temperature | ℃ | -5 to +70 | ||||
Storage Temperature | ℃ | -40 to +85 | ||||
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for In-Line Polarizer
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-SM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-SM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-SM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-SM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber SM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber PM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber PM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber PM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 250 μm Bare Fiber PM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-SM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-SM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-SM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-SM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube SM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube PM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube PM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube PM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/APC 900 μm Loose Tube PM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-SM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-SM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-SM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-SM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber SM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber PM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber PM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber PM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 250 μm Bare Fiber PM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-SM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-SM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-SM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-SM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube SM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube PM-PM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube PM-PM 1.0 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube PM-PM 0.75 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm FC/UPC 900 μm Loose Tube PM-PM 0.75 m Non-PM - Price: $100 - Stock: 1000
- Configuration: 1310 nm None 250 μm Bare Fiber SM-SM 1.0 m Fast axis blocked - Price: $100 - Stock: 1000
- Configuration: 1310 nm None 250 μm Bare Fiber SM-SM 1.0 m Non-PM - Price: $100 - Stock: 1000
