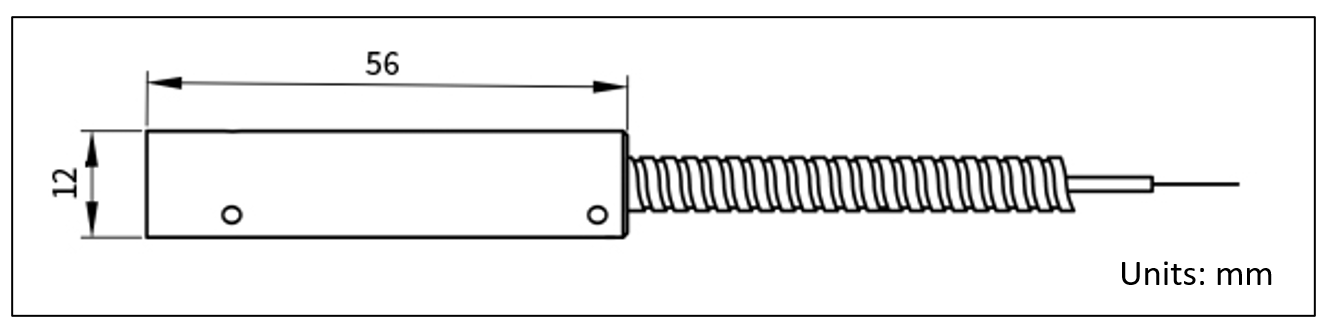

Package Dimensions

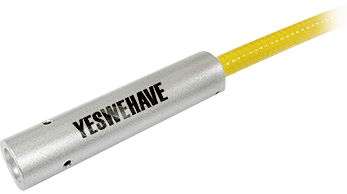

High Power Fiber Collimator
Overview
The 1064 nm PM Fiber Collimator is a basic element for in-line fiber optic components, such as isolator. It has low insertion loss and high return loss. The unique processing and high quality AR coating enable this PM Fiber collimator to handle high average power.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | ± 10 |
Max. Insertion Loss (Free Space) | dB | 0.3 |
Nominal Beam Diameter (1/e2, @1064 nm) | nm | 0.55 ± 0.1 |
Max. M² @1064 nm | - | ＜1.1 |
Min. Ellipticity | % | 95 |
Full Divergence Angle | mrad | 3.5 |
Full Pointing Angle | mrad | 2.0 |
Min. Return Loss | dB | 55 |
Min. Extinction Ratio | dB | 20 |
Max. Optical Power (Continuous Wave, 1064 nm) | W | 20 |
Max. Tensile Load | N | 5 |
Fiber Type | - | PM 980 Fiber |
Operating Temperature | ℃ | -5 to 70 |
Storage Temperature | ℃ | -40 to 85 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for High Power Fiber Collimator
- Configuration: 1064 nm 6 mm Armoured Cable with PVC Tube 1 m 2 m PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm 6 mm Armoured Cable with PVC Tube 1 m Specify PM 980 - Price: $10000 - Stock: 999
- Configuration: 1064 nm 6 mm Armoured Cable with PVC Tube Specify 2 m PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm 6 mm Armoured Cable with PVC Tube Specify Specify PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm Specify 1 m 2 m PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm Specify 1 m Specify PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm Specify Specify 2 m PM 980 - Price: $10000 - Stock: 1000
- Configuration: 1064 nm Specify Specify Specify PM 980 - Price: $10000 - Stock: 1000
