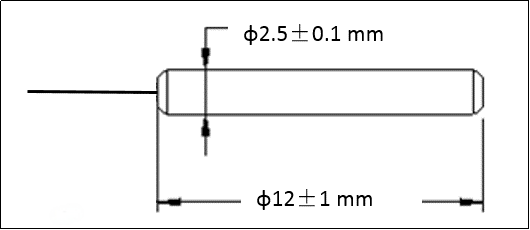

Package Dimensions

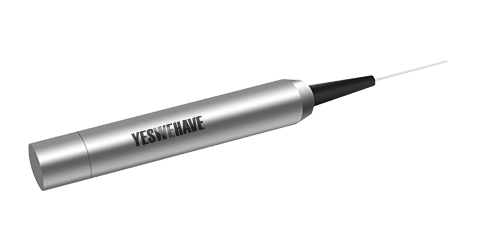

1550 nm 300 mW Faraday Mirror
Overview
The Faraday Mirror is a passive device that provides 90 degree rotation regarding to the polarization state of the input light. The FM offers excellent performance including the lowest possible insertion loss and environmental stability.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1550 |
Operating Wavelength Width | nm | λc ± 30 |
Max. Insertion Loss, λc, -23 ℃ | dB | 0.6 |
Max. Insertion Loss, λc, -55 to 85 ℃ | dB | 0.8 |
Max. Power Handling | mW | 300 |
Faraday Rotation Angle for CWL | degree | 45 |
Fiber Type | - | SMF-28 or ZBL fiber |
Fiber Length | m | 1 |
Max. Tensile Load | N | 5 |
Operating Temperature | ℃ | -5 to +50 |
Storage Temperature | ℃ | -40 to +85 |
For device with connector, IL is 0.3 dB higher, RL is 5 dB lower, The default connector key is aligned to slow axis.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1550 nm 300 mW Faraday Mirror
- Configuration: 1550 nm FC/UPC 250 μm Bare Fiber 1 m SMF-28 - Price: $10000 - Stock: 998
- Configuration: 1550 nm FC/UPC 250 μm Bare Fiber 1 m ZBL - Price: $10000 - Stock: 1000
- Configuration: 1550 nm FC/APC 250 μm Bare Fiber 1 m SMF-28 - Price: $10000 - Stock: 1000
- Configuration: 1550 nm FC/APC 250 μm Bare Fiber 1 m ZBL - Price: $10000 - Stock: 1000
- Configuration: 1550 nm None 250 μm Bare Fiber 1 m SMF-28 - Price: $10000 - Stock: 1000
- Configuration: 1550 nm None 250 μm Bare Fiber 1 m ZBL - Price: $10000 - Stock: 1000
