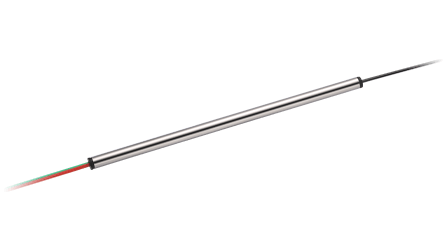

Dense Wavelength Division Multiplexer
Overview
The Dense Wavelength Division Multiplexer series is designed and manufactured based on Telcordia standard and ITU standard. The devices use environmentally stable thin film filter and advanced packaging technology to achieve wide pass band, low insertion loss, high channel isolation and excellent environmental stability. They can be used to perform single channel add or drop function or can be cascaded into sequence for multi-channel applications in DWDM systems.

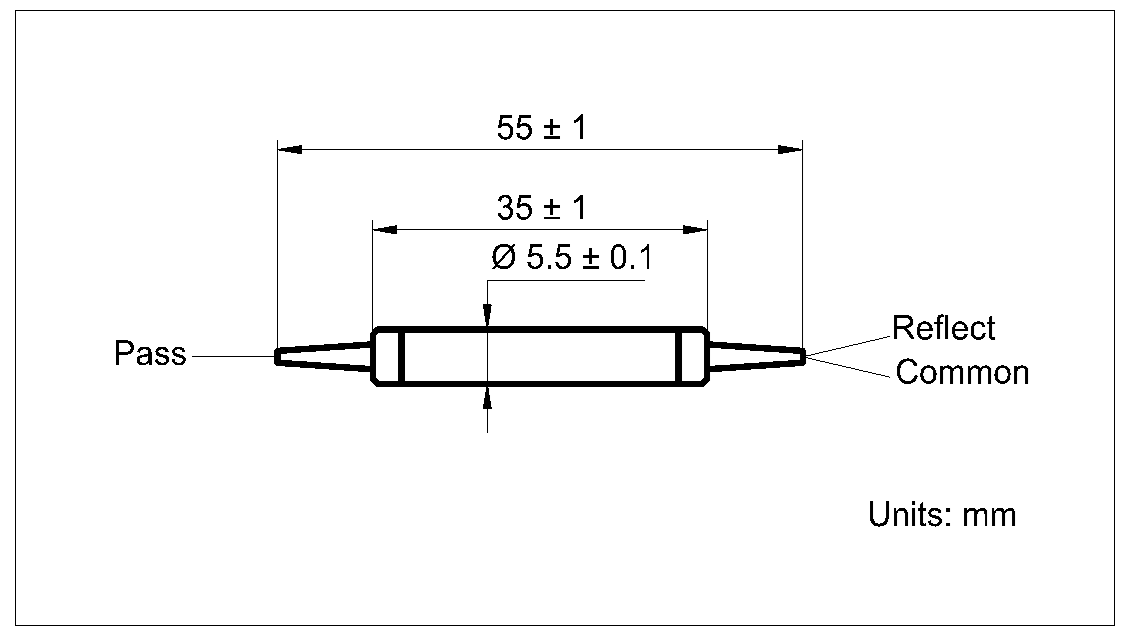

Parameter | Unit | Value | ||
Filter Type | - | 100 GHz | 200 GHz | |
Pass Band | Center Wavelength | nm | ITU Grid | |
Min. Bandwidth @ 0.5 dB | nm | 0.22 | 0.5 | |
Max. Insertion Loss | dB | 1.0 | 0.8 | |
Min. Channel Isolation | dB | 25 | ||
Reflection Band | Max. Insertion Loss | dB | 0.4 | |
Min. Channel Isolation | dB | 12 | ||
Max. Polarization Dependent Loss | dB | 0.1 | ||
Min. Directivity | dB | 45 | ||
Min. Return Loss | dB | 50 | ||
Center Wavelength Stability | nm/℃ | 0.002 | ||
Thermal Stability | dB/℃ | 0.005 | ||
Max. Optical Power | mW | 300 | ||
Max. Tensile Load | N | 5 | ||
Fiber Type | - | SMF-28 | ||
Operating Temperature | ℃ | - 5 to + 70 | ||
Storage Temperature | ℃ | - 40 to + 85 | ||
* Above specifications are for device without connector. For devices with connectors, IL increases by 0.3 dB, RL decreases by 5 dB.
*All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for Dense Wavelength Division Multiplexer
- Configuration: 100 GHz Specify FC/UPC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 999
- Configuration: 100 GHz Specify FC/UPC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify FC/APC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify FC/APC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify SC/UPC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify SC/UPC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify SC/APC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify SC/APC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify None 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify None 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify Specify 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 100 GHz Specify Specify 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify FC/UPC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify FC/UPC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify FC/APC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify FC/APC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify SC/UPC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify SC/UPC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify SC/APC 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify SC/APC 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify None 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify None 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify Specify 250 μm Bare Fiber 1.0 m - Price: $10000 - Stock: 1000
- Configuration: 200 GHz Specify Specify 900 μm Loose Tube 1.0 m - Price: $10000 - Stock: 1000
