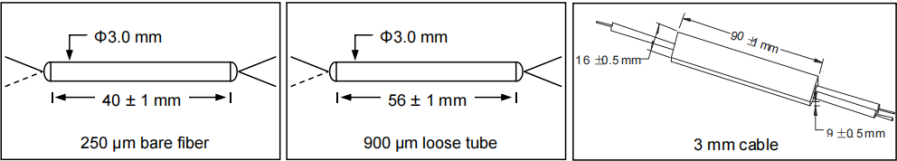

Package Dimensions

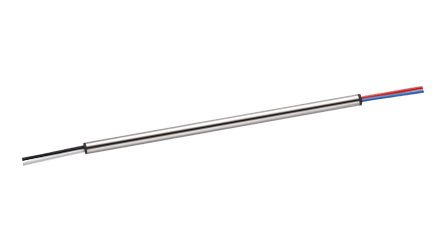

850 nm Broadband Fiber Optic Coupler
Overview
Parameter | Value | ||
Center Wavelength | 850 nm | ||
Coupling Ratio | 99:1 | 50:50 | 90:10 |
Coupling Ratio Tolerance | ±0.6% | ±6.0% | ±3.0% |
Minimum Bandwidth | ±100 nm | ||
Insertion Loss | ≤0.5 dB / ≤24.4 dB | ≤4.0 dB / ≤4.0 dB | ≤1.0 dB / ≤11.9 dB |
Excess Loss | <0.3 dB (Typ.) | ||
Uniformity | ≤3.0 dB | ≤1.2 dB | ≤2.0 dB |
Polarization-Dependent Loss (PDL) | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
Optical Return Loss (ORL) / Directivity | ≥60 dB | ≥60 dB | ≥60 dB |
Max Power Level | 500 mW (With Connectors or Bare Fiber) 2 W (Spliced) | ||
Fiber Type | 780HP | ||
Fiber Cut-Off Wavelength | 730 ± 30 nm | ||
Fiber Lead Length and Tolerance | 1x2 | ||
Operating Temperature Range | -40 to 85 °C | ||
Storage Temperature Range | -40 to 85 °C | ||
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 850 nm Broadband Fiber Optic Coupler
- Configuration: 1 × 2 850 nm 01/99 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 01/99 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 10/90 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 850 nm 50/50 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 01/99 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 10/90 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 850 nm 50/50 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
