Overview

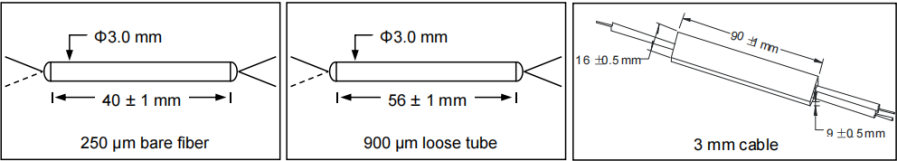

Package Dimensions

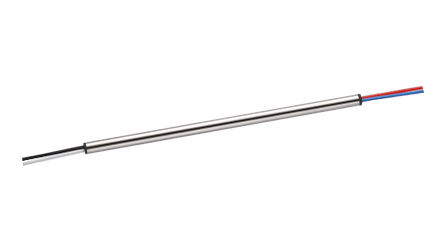

1064 nm Broadband Fiber Optic Coupler
Overview
Parameter | Value | ||
Center Wavelength | 1064 nm | ||
Coupling Ratio | 99:1 | 50:50 | 90:10 |
Coupling Ratio Tolerance | ±0.6% | ±5.0% | ±2.5% |
Minimum Bandwidth | ±100 nm | ||
Insertion Loss | ≤0.4 dB / ≤24.3 dB | ≤3.8 dB / ≤3.8 dB | ≤0.9 dB / ≤11.5 dB |
Excess Loss | <0.2 dB (Typ.) | ||
Uniformity | ≤1.2 dB | ≤0.6dB | ≤0.8 dB |
Polarization-Dependent Loss (PDL) | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
Optical Return Loss (ORL) / Directivity | ≥60 dB | ≥60 dB | ≥60 dB |
Max Power Level | 1 W (With Connectors or Bare Fiber) 5 W (Spliced) | ||
Fiber Type | HI 1060 | ||
Fiber Cut-Off Wavelength | 920 ± 50 nm | ||
Fiber Lead Length and Tolerance | 1x2 | ||
Operating Temperature Range | -40 to 85 °C | ||
Storage Temperature Range | -40 to 85 °C | ||
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1064 nm Broadband Fiber Optic Coupler
- Configuration: 1 × 2 1064 nm 01/99 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 997
- Configuration: 1 × 2 1064 nm 01/99 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 994
- Configuration: 1 × 2 1064 nm 01/99 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 998
- Configuration: 1 × 2 1064 nm 01/99 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 01/99 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 10/90 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 1 × 2 1064 nm 50/50 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 01/99 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 999
- Configuration: 2 × 2 1064 nm 10/90 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 10/90 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 FC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/UPC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/UPC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/UPC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/APC 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/APC 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 SC/APC 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 None 250 μm Bare Fiber 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 None 900 μm Loose Tube 1.0 m - Price: $99 - Stock: 1000
- Configuration: 2 × 2 1064 nm 50/50 None 3 mm Cable 1.0 m - Price: $99 - Stock: 1000
