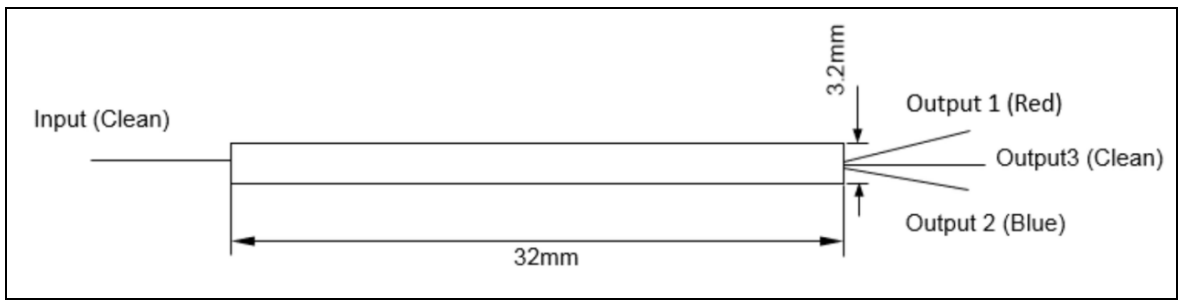

Package Dimensions

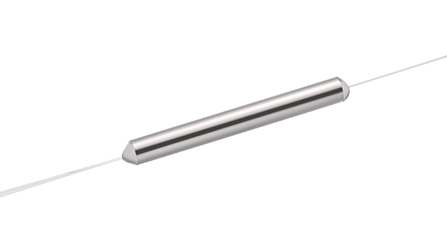

1x3 Polarization Maintaining Coupler
Overview
The 1x3 Polarization Maintaining Coupler is designed for splitting or combining optical signals in polarization-maintaining fiber systems. It features high extinction ratio, low insertion loss, and excellent stability across a wide wavelength range.
Parameter | Unit | Value |
Center Wavelength, λc | nm | 1310 or 1550 |
Operating Wavelength Range | nm | λc ± 10 |
Max. Insertion Loss | dB | 5.8 |
Min. Extinction Ratio | dB | 18 |
Max. Optical Power (CW) | mW | 300 |
Max. Tensile Load | N | 5 |
Fiber Type | - | PM1310 or PM1550 Fiber |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1x3 Polarization Maintaining Coupler
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber 0.75 m PM1310 Fiber - Price: $10000 - Stock: 997
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber 0.75 m PM1550 Fiber - Price: $10000 - Stock: 1000
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber 1 m PM1310 Fiber - Price: $10000 - Stock: 1000
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber 1 m PM1550 Fiber - Price: $10000 - Stock: 1000
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber Specify PM1310 Fiber - Price: $10000 - Stock: 1000
- Configuration: 1310 nm Even Split None 250 μm Bare Fiber Specify PM1550 Fiber - Price: $10000 - Stock: 1000
