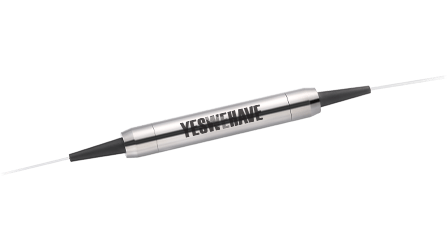

Polarization Insensitive Mini Fiber Optic Circulator

The Circulator is a compact, high performance light wave component that routes incoming signals from port 1 to port 2, and port 2 to port 3. The component provides high isolation, low insertion loss, high extinction ratio,and excellent environment stability.

Parameter	Unit	Values
Center Wavelength	nm	1310
Operating Wavelength	nm	±60
Max. Insertion Loss, λc, 23 ℃	dB	0.6
Min. Isolation, λc, 23 ℃	dB	35
Max. Polarization Dependent Loss	dB	0.15
Polarization Mode Dispersion	ps	0.1
Min. Crosstalk	dB	60
Min. Return Loss	dB	60
Max. Optical Power (Continuous Wave)	mW	500
Fiber Type	-	SMF-28
Max. Tensile Load	N	5
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

**IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.

Ordering Information	Qty	Price	Available

Ordering Information

QuantityPriceAvailable

Please select the ordering information to view price.

Polarization Insensitive Mini Fiber Optic Circulator

Overview

Available Configurations and Pricing for Polarization Insensitive Mini Fiber Optic Circulator

Key Features

Applications

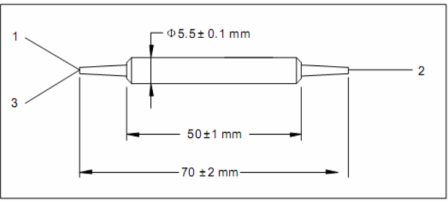

Package Dimensions
