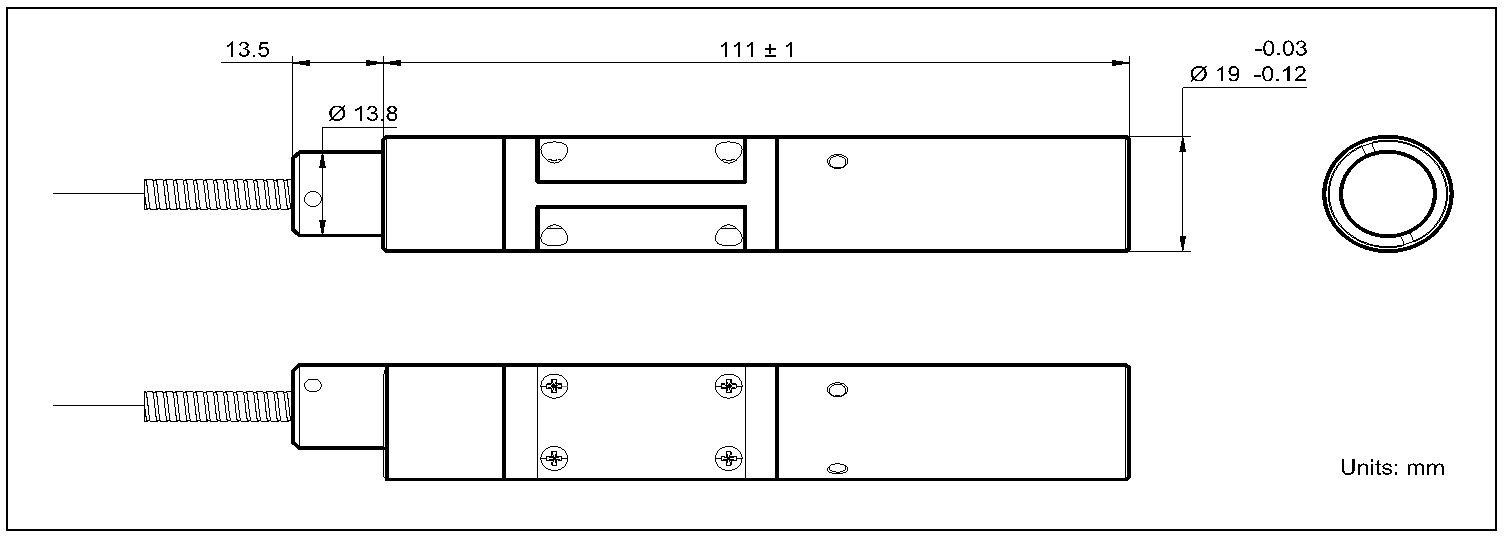

Package Dimensions

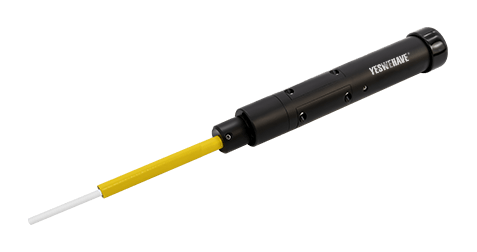

1064 nm Fiber to Free Space High Power Isolator
Overview
The 1064 nm Fiber to Free Space High Power Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, and excellent environmental stability and reliability. It is ideal for fiber amplifier, fiber laser output isolation.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1067 |
Max. Average Optical Power | W | 55 |
Max. Peak Power for ns pulse | kW | 15 |
Typ. Peak Isolation | dB | 30 |
Isolation at 23℃, λc | dB | 30 |
Isolation at 5℃, λc | dB | 20 |
Isolation at 40℃, λc | dB | 20 |
Isolation at λc ± 10 nm | dB | 28 |
Transmission at 23℃, λc | % | 93 |
Min. Return Loss | dB | 50 |
Output Beam Diameter | mm | 7.3 (>6.5, <8.0) |
Beam Roundness | % | ≥ 90 |
650 nm Transmission | % | ≥ 20 |
Beam Divergence Angle | mrad | 0.35 |
Beam Offset | mm | 0.5 |
M2 Degradation | mrad | 10 |
Operating Temperature | % | < 10 |
Storage Temperature | ℃ | +5 to +50 |
Loose Tube Length | ℃ | -20 to +65 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 1064 nm Fiber to Free Space High Power Isolator
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 0.83 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 1.9 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.075 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube 3.0 ± 0.05 m YOFC-GDF-SC-30/250-0.065 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.075 Specify Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 1.8 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 1.8 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 2.9 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 2.9 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 3.7 m Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 3.7 m Continuous Wave - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 Specify Pulse Application - Price: $10000 - Stock: 1000
- Configuration: 1067 nm 55 W 7.3 mm 6 mm Armoured cable with yellow PVC tube Specify YOFC-GDF-SC-30/250-0.065 Specify Continuous Wave - Price: $10000 - Stock: 1000
