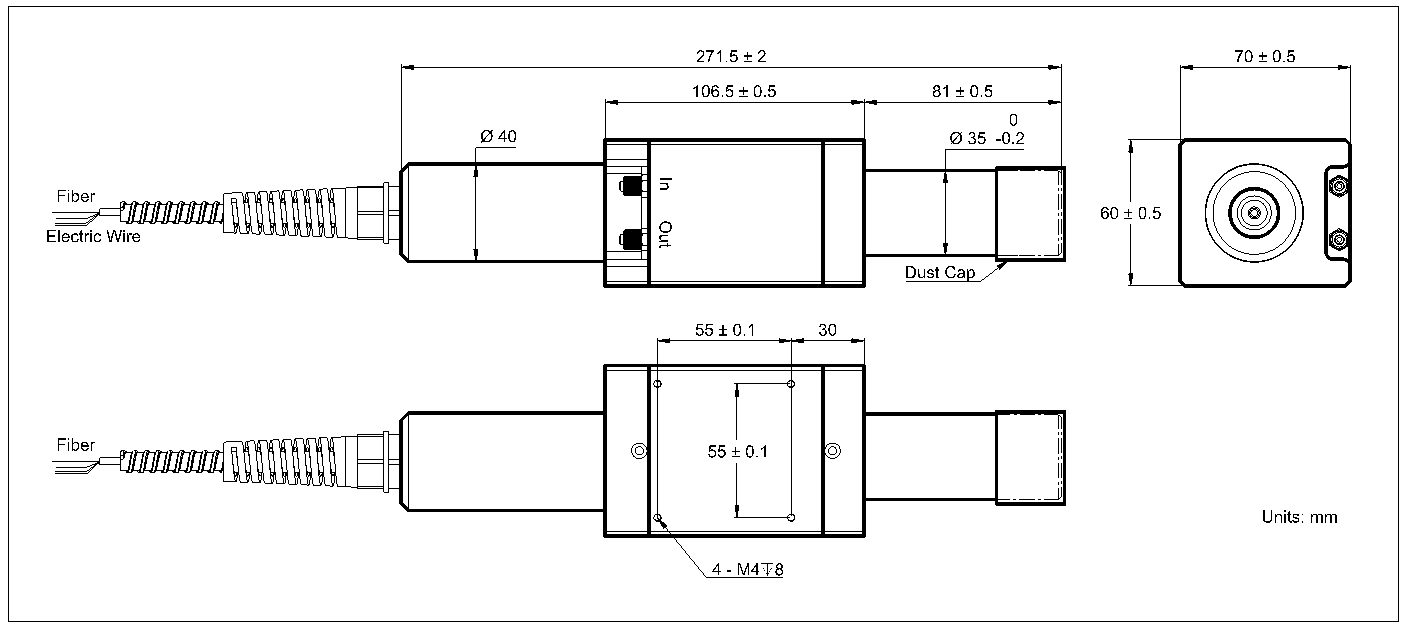

Package Dimensions

1064 nm 500 W Fiber to Free-space Isolator

Overview

YESWEHAVE’s high power fiber to free-space isolator (HPFSI) is the best choice for high power industrial pulse fiber lasers. With unique patented technology, the power handling capacity was elevated to 500 W average laser power and with very competitive cost-effectiveness.

Optical Parameter

Unit

Value

Operating Wavelength (λc)

nm

1064 ± 15

Max. Insertion Loss at 23 ℃, λc

dB

0.4

Typ. Peak Isolation

dB

40

Min. Isolation at  28 ℃

dB

30

Min. Return Loss

dB

50

Nominal Output Beam Diameter (1/e^2 @500W)1

mm

7.0 ± 0.5 @ M2=1.5

Beam Circularity @ Focal spot1

%

> 90

M2 Degradation

%

< 10

640 nm Transmission

%

> 20

Max. Focal Shift of Thermal Lens1

ZR

≤ 0.5

Typ. Focal Shift of Thermal Lens1

ZR

≤ 0.2

Max. Average Optical Power

W

500

Max. Peak Power for ns Pulse

kW

50

Max. Average Optical Power from Cladding

W

5

Max. Tensile Load

N

5

Beam Offset

mm

< 0.7

Pointing Error

mrad

< 2.5

Fiber and Conditions Parameter

Fiber Type

-

Specified by ordering info

Cooling

-

Water

Water Quality

-

Purified or Distilled Water

Flow Rate

L / min

1.5 - 2.5

Water Pressure

Mpa

≤ 0.3

Water Temperature

-

≥ 5 °C above Dew Point Temperature

Water PH Value

-

6.2 - 7.9

Operating Temperature

℃

+ 10 to + 50

Storage Temperature

℃

      - 10 to + 60

1The high power performances are tested by the Beam Squared.

Ordering InformationQtyPriceAvailable
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.

Available Configurations and Pricing for 1064 nm 500 W Fiber to Free-space Isolator

  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm 10 mm Armoured cable Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm 7 mm Specify Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify 10 mm Armoured cable Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: 1064 nm Specify Specify Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm 10 mm Armoured cable Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify 7 mm Specify Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify 10 mm Armoured cable Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify  5.0 m Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify CJGDF-30/250-062  6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify CJGDF-30/250-062  6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify CJGDF-30/250-062  Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify CJGDF-30/250-062  Specify Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify Specify 6.5 m Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify Specify 6.5 m Continuous Wave - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify Specify Specify Pulse Application - Price: $10000 - Stock: 1000
  • Configuration: Specify Specify Specify Specify Specify Specify Continuous Wave - Price: $10000 - Stock: 1000
