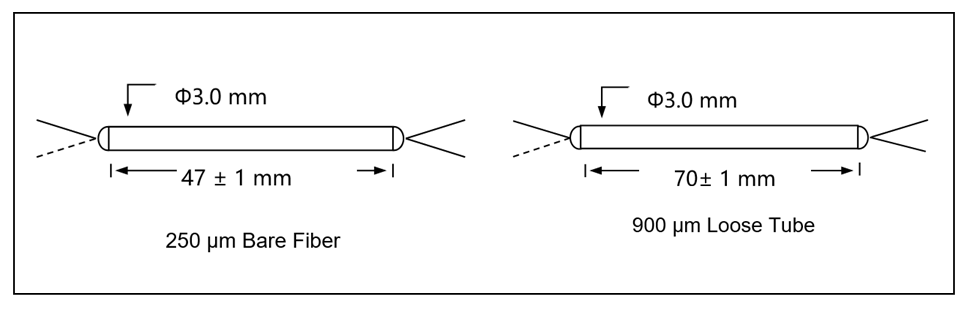

Package Dimensions

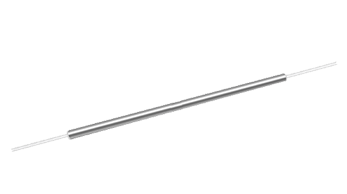

635/1064 nm Wavelength Division Multiplexers WDM
Overview
The WDM 635/1064 nm excels in industrial laser applications, supporting dual-wavelength operations with minimal signal degradation. Its compact and efficient design makes it ideal for precision-driven laser systems.
Parameter | Unit | Value |
Longer Operating Wavelength | nm | 1064 ± 5 |
Max. Insertion Loss | dB | 0.15 |
Max. Polarization Dependent Loss | dB | 0.1 |
Min. Isolation | dB | 20 |
Shorter Operating Wavelength | nm | 635 ± 5 |
Max. Insertion Loss | dB | 1.0 |
Min. Isolation | dB | 10 |
Thermal Stability | dB/℃ | ≤ 0.002 |
Min. Return Loss | dB | 55 |
Min. Directivity | dB | 55 |
Max. Optical Power (Continuous Wave) | W | 5 |
Operating Temperature | ℃ | -40 to +75 |
Storage Temperature | ℃ | -40 to +85 |
*Test at central wavelength only.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 635/1064 nm Wavelength Division Multiplexers WDM
- Configuration: 1 × 2 635 & 1064 nm 250 μm Bare Fiber 1.0 m Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 250 μm Bare Fiber 1.0 m Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 900 μm Loose Tube 1.0 m Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 900 μm Loose Tube 1.0 m Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 250 μm Bare Fiber Specify Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 250 μm Bare Fiber Specify Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 900 μm Loose Tube Specify Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 1 × 2 635 & 1064 nm 900 μm Loose Tube Specify Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 250 μm Bare Fiber 1.0 m Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 250 μm Bare Fiber 1.0 m Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 900 μm Loose Tube 1.0 m Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 900 μm Loose Tube 1.0 m Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 250 μm Bare Fiber Specify Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 250 μm Bare Fiber Specify Nufern FUD-3584 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 900 μm Loose Tube Specify Corning HI 1060 - Price: $19.9 - Stock: 1000
- Configuration: 2 × 2 635 & 1064 nm 900 μm Loose Tube Specify Nufern FUD-3584 - Price: $19.9 - Stock: 1000
