Overview

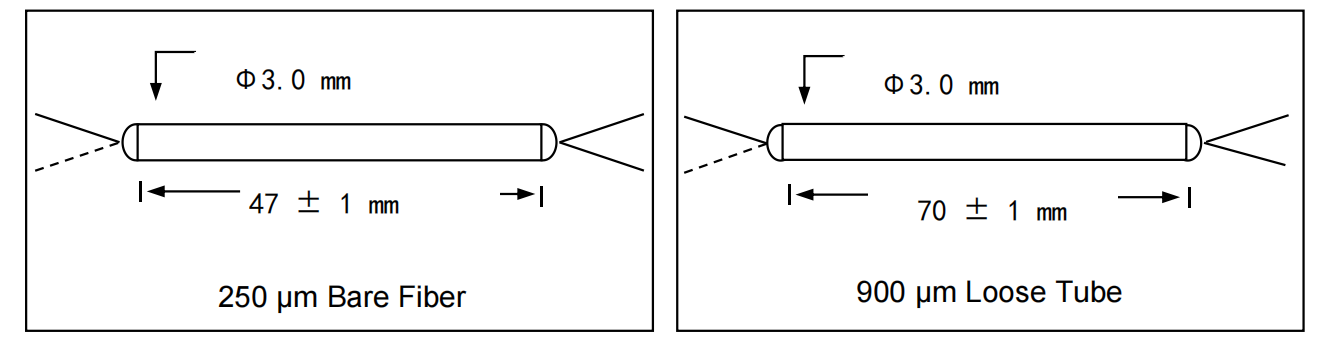

Package Dimensions

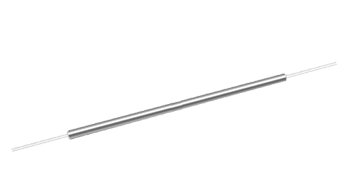

980/1550 nm Singlemode Wavelength Division Multiplexers
Overview
This Singlemode WDM is optimised for industrial lasers, optical networks, and fibre sensing applications. Offering high reliability and low excess loss, it delivers exceptional performance in multi-wavelength systems.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 980/1550 |
Operating Wavelength | nm | λc ± 15 |
Min. Isolation | dB | 20 |
Max. Insertion Loss | dB | 0.15 |
Max. Polarization Dependent Loss | dB | 0.1 |
Thermal Stability | dB/℃ | ≤ 0.002 |
Min. Return Loss | dB | 60 |
Min. Directivity | dB | 60 |
Max. Optical Power (Continuous Wave) | mW | 300 |
Operating Temperature | ℃ | -40 to +75 |
Storage Temperature | ℃ | -40 to +85 |
*IL is 0.5 dB higher, RL is 5 dB lower for each connector added
.*Test at central wavelength only.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 980/1550 nm Singlemode Wavelength Division Multiplexers
- Configuration: 1 × 2 980 & 1550 nm FC/APC 900 μm Loose Tube 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 1 × 2 980 & 1550 nm None 250 μm Bare Fiber 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 1 × 2 980 & 1550 nm FC/APC 250 μm Bare Fiber 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 1 × 2 980 & 1550 nm None 900 μm Loose Tube 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 2 × 2 980 & 1550 nm FC/APC 250 μm Bare Fiber 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 2 × 2 980 & 1550 nm None 250 μm Bare Fiber 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 2 × 2 980 & 1550 nm FC/APC 900 μm Loose Tube 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
- Configuration: 2 × 2 980 & 1550 nm None 900 μm Loose Tube 1.0 m HI 1060 Flex - Price: $19.9 - Stock: 100
