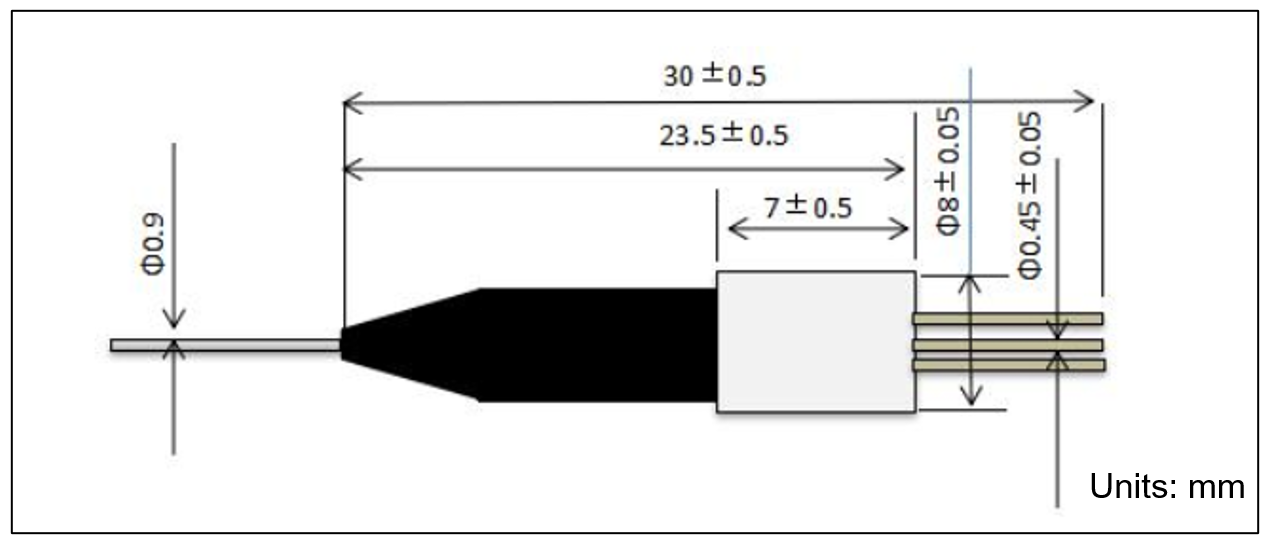

Package Dimensions
Fiber-Pigtailed Laser Diode
Overview
Pigtailed Laser Diodes are compact, fiber-coupled modules designed for clean single-mode output across a broad range of wavelengths. Offered in a coaxial package, these units simplify alignment and integration, especially in systems that demand space efficiency and stable beam control. Each model is available with a configurable fiber type, connector, and jacket to suit different system needs. Optional red-light indicators improve ease of setup, while compatibility with YESWEHAVE’s external drivers and WDM couplers extends their use in complex photonic applications.
Optical Parameter | Unit | Value | |||
Wavelength | nm | 488 | 520 | 638 | 785 |
Max. Output Power | mW | 25 | 30 | 50 | 30 |
Fiber Core | μm | 3.5 | 3.5 | 4.0 | 5.0 |
Electrical Parameter | |||||
Threshold Current | Ith/mA | 40 | 50 | 60 | 30 |
Operating Current | Iop/mA | 105 | 150 | 215 | 1.2 |
Operating Voltage | Vop/V | 6 | 6.5 | 2.55 | 2.0 |
Other Parameter | |||||
Operating Temperature | ℃ | -10 to +60 | |||
℃ | -40 to +85 | ||||
- | 260℃, 10s | ||||
For more information about product requirements, please contact us at sales@yeswehave.com
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Fiber-Pigtailed Laser Diode
- Configuration: 405 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 405 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 450 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 488 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 505 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 520 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 638 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 658 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $1000000 - Stock: 1000
- Configuration: 658 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $1000000 - Stock: 1000
- Configuration: 658 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $1000000 - Stock: 1000
- Configuration: 658 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 658 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 658 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 658 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 658 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 685 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 250 μm Bare Fiber FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 250 μm Bare Fiber FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 250 μm Bare Fiber FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 250 μm Bare Fiber FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 900 μm Loose Tube FC/UPC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 900 μm Loose Tube FC/UPC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 900 μm Loose Tube FC/APC 1 m PM Fiber - Price: $100000 - Stock: 1000
- Configuration: 785 nm xx mW 900 μm Loose Tube FC/APC 1 m Singlemode Fiber - Price: $100000 - Stock: 1000
