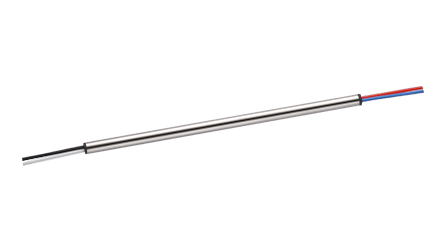

Mini Polarization Maintaining Fused Wavelength Division Multiplexer
Overview
The Polarization Maintaining Fused Wavelength Division Multiplexer combine or separate light at different wavelengths. They offer very low insertion loss, high extinction ratio, and excellent environmental stability.
Parameter | Unit | Value |
Longer Operating Wavelength | nm | 1550 ± 20 |
Max. Insertion Loss | dB | 0.7 |
Min. Isolation | dB | 17 |
Min. PER | dB | 20 |
Shorter Operating Wavelength | nm | 980 ± 10 |
Max. Insertion Loss | dB | 0.7 |
Min. Isolation | dB | 17 |
Thermal Stability | dB/℃ | ≤ 0.005 |
Min. Return Loss | dB | 55 |
Min. Directivity | dB | 55 |
Max. Optical Power (Continuous Wave) | W | 20 |
Fiber Type | - | Panda PM Fiber |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |

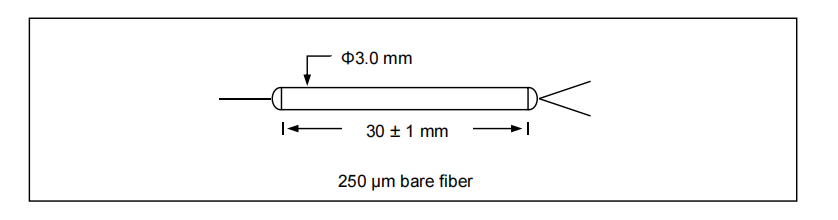

*IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
*For PM980 fiber option, the components can only operate on slow axis.
*Test at central wavelength only.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for Mini Polarization Maintaining Fused Wavelength Division Multiplexer
- Configuration: 1 × 2 980 & 1550 nm None Mini Size 0.75 m - Price: $300 - Stock: 100
