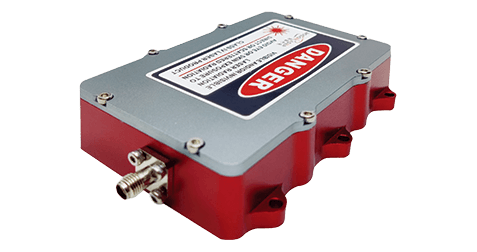

Multimode RGB Laser Module
The Multimode RGB Laser Module integrate three lasers—Red, Green, and Blue—into a single fiber to produce a high-quality white laser output. These modules are compatible with both circular and square homogenized fibers, offering excellent coupling efficiency. With their compact size, high stability, and long operational life, these modules are ideal for secondary integration, providing a reliable solution for a wide range of applications.
Parameter | Unit | Values |
Spectral Range | nm | 450 & 520 & 635, 442 & 525 & 638 |
Output Power | - | 1 mW - 20 W |
Color Temperature | K | 4000 - 7000 |
Fiber Core Diameter | μm | 200, 300, 400 |
Fiber Numerical Aperture | - | 0.22 |
Fiber Output Connector | - | SMA905 FC.ST (Design on Request) |
Fiber Length | m | 1 (Support Customization) |
Laser Drive Mode | - | CW, Analog Modulation, Digital Modulation |
Lead Soldering Temperature | ℃ | 260 |
Operating Voltage | V | 3 - 24 |
Operating Temperature | ℃ | 0 - 40 |
Storage Temperature | ℃ | -40 - 80 |
MTPF | hrs | >10,000 |
For more information about product requirements, please contact us at sales@yeswehave.com
