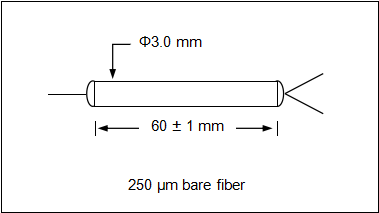

Package Dimension

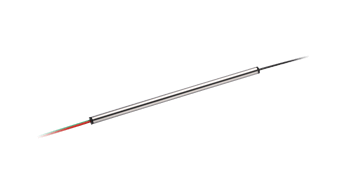

RG, RB, GB Combiner
Overview
Optimised for advanced optical setups, the RG, RB, GB Combiners facilitate seamless integration of red, green, and blue wavelengths. Their precise alignment capabilities make them indispensable in fibre sensing and biochemical research environments.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 532/635, 488/635, 488/532 |
Typ. Insertion Loss, λc | dB | 0.3 |
Max. Insertion Loss, λc | dB | 0.5 |
Thermal Stability | dB/℃ | ≤0.002 |
Min. Return Loss | dB | 55 |
Min. Directivity | dB | 55 |
Max. Optical Power (Continuous Wave) | mW | 300 |
Operating Temperature | ℃ | -40 to +75 |
Storage Temperature | ℃ | -40 to +85 |
*IL is 1.5 dB higher, RL is 5 dB lower for each connector added.
*The Optical Power is 50 mW only for connector added.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for RG, RB, GB Combiner
- Configuration: 1 × 2 532 & 635 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 532 & 635 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 532 & 635 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 532 & 635 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 532 & 635 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 532 & 635 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 635 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 1 × 2 488 & 532 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 532 & 635 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 998
- Configuration: 2 × 2 532 & 635 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 532 & 635 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm FC/APC 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm None 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm Specify 250 μm Bare Fiber 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 532 & 635 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 532 & 635 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 532 & 635 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 635 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm FC/APC 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm None 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
- Configuration: 2 × 2 488 & 532 nm Specify 900 μm Loose Tube 1.0 m Nufern 460-HP - Price: $200 - Stock: 1000
