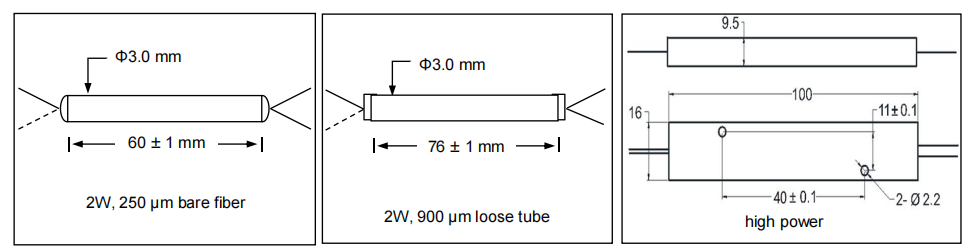

Package Dimensions
976/1064 nm Polarization Maintaining Fused Wavelength Division Multiplexer
Overview
Designed for industrial lasers, fiber sensing, and optical networks, the PM WDM 976/1064 nm offers robust wavelength management and high stability. It supports polarisation-maintaining configurations, ensuring superior performance in complex setups.
Parameter | Unit | Value |
Longer Operating Wavelength | nm | 1064 ± 2 or Specify |
Max. Insertion Loss | dB | 0.5 |
Min. Isolation | dB | 15 |
Min. PER | dB | 18 |
Shorter Operating Wavelength | nm | 976 ± 2 or Specify |
Max. Insertion Loss | dB | 0.5 |
Min. Isolation | dB | 15 |
Min. PER | dB | 18 |
Thermal Stability | dB/℃ | ≤ 0.005 |
Min. Return Loss | dB | 55 |
Min. Directivity | dB | 55 |
Max. Optical Power (Continuous Wave) | W | 20 |
Fiber Type | - | PM Panda Fiber |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for 976/1064 nm Polarization Maintaining Fused Wavelength Division Multiplexer
- Configuration: 1 × 2 976 & 1064 nm FC/APC 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm None 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm Specify 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm FC/APC 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm None 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm Specify 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm FC/APC High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm None High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 1 × 2 976 & 1064 nm Specify High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm FC/APC 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm None 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm Specify 2W, 250 μm Bare Fiber 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm FC/APC 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm None 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm Specify 2W, 900 μm Loose Tube 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm FC/APC High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm None High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
- Configuration: 2 × 2 976 & 1064 nm Specify High Power 0.75m Corning Panda PM 980 - Price: $200 - Stock: 100
