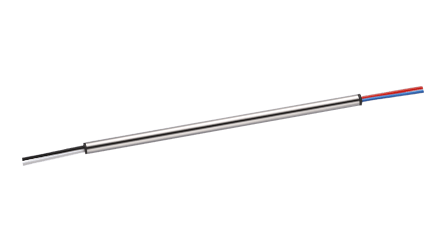

976/1030 nm Polarization Maintaining Fused Wavelength Division Multiplexer
The 976/1030 nm Polarization Maintaining Fused Wavelength Division Multiplexer (PM WDM) is designed for high-performance optical systems, including fiber lasers, fiber amplifiers, fiber sensing, and WDM optical networks. Its advanced fused design provides low insertion loss, high isolation, and precise polarization control, ensuring stable and clean signal transmission. Compact, robust, and customizable, this PM WDM supports high extinction ratios and a wide range of power handling, delivering reliable performance in both laboratory research and demanding industrial environments. Ideal for applications requiring efficient wavelength multiplexing and polarization-sensitive operation.
Parameter | Unit | Value |
Longer Operating Wavelength | nm | 1030 ± 2 or Specify |
Max. Insertion Loss | dB | 0.5 |
Min. Isolation | dB | 15 |
Min. PER | dB | 18 |
Shorter Operating Wavelength | nm | 976 ± 2 or Specify |
Max. Insertion Loss | dB | 0.5 |
Min. Isolation | dB | 15 |
Min. PER | dB | 18 |
Thermal Stability | dB/℃ | ≤ 0.005 |
Min. Return Loss | dB | 55 |
Min. Directivity | dB | 55 |
Max. Optical Power (Continuous Wave) | W | 20 |
Fiber Type | - | PM Panda Fiber |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |
*IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
*Test at central wavelength only.
