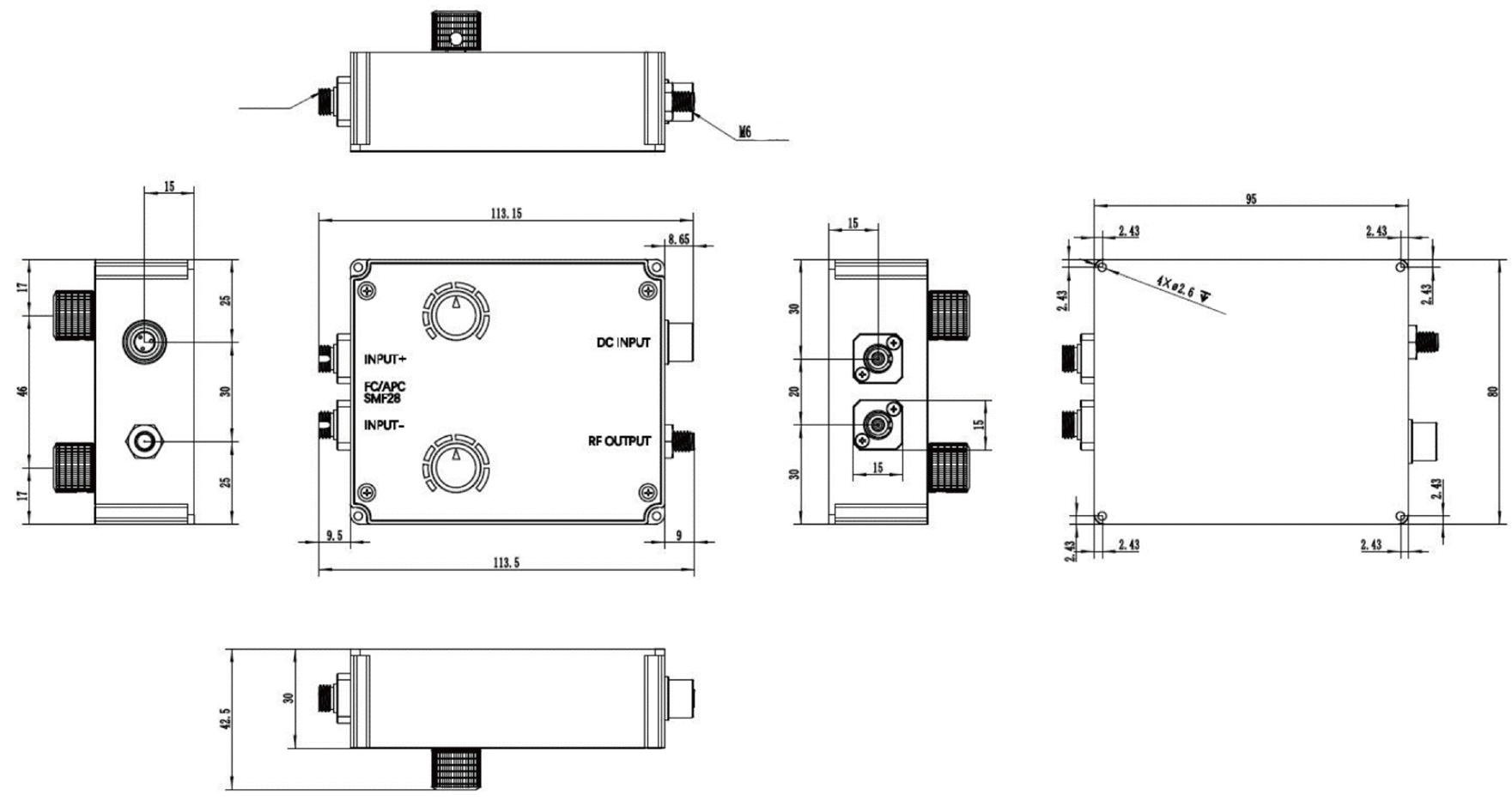

Package Dimensions

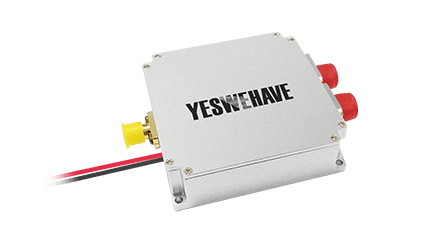

Balanced Amplified Photodetector with Fast Monitor Output
Overview
The 1064nm Fiber to Free Space High Power Isolator is characterized with low insertion loss, high isolation, high power handling,high return loss, and excellent environmental stability and reliability. It is ideal for fiber amplifer, fiber laser output isolation.
Parameter | Unit | Value |
Materials | - | InGaAs APD |
Wavelength | nm | 1000 ~ 1700 |
Input Connector | - | FC/APC |
Responsivity | nm | 0.9A/W @1550 |
Common-mode Rejection Ratio (CMRR) | dB | > 35 |
Max. Output Amplitude | V | ± 2.0 |
Operating Voltage | V | ± 12 |
Operating Current | mA | < 200 |
Output Impedance | Ω | 50 |
Output Coupling Mode | - | DC |
Output Connector | - | SMA Female |
Operating Temperature Range | ℃ | 0 to + 55 |
Storage Temperature Range | ℃ | - 40 to + 85 |
Bandwidth, 3 dB | MHz | 200, 400 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Balanced Amplified Photodetector with Fast Monitor Output
- Configuration: 800 - 1700 nm 200 MHz - Price: $1100 - Stock: 1000
- Configuration: 800 - 1700 nm 400 MHz - Price: $1510 - Stock: 1000
