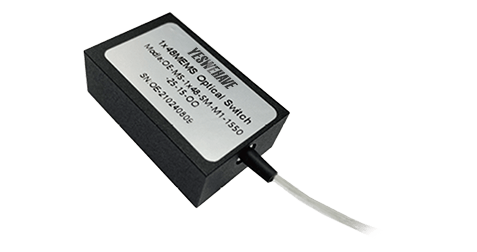

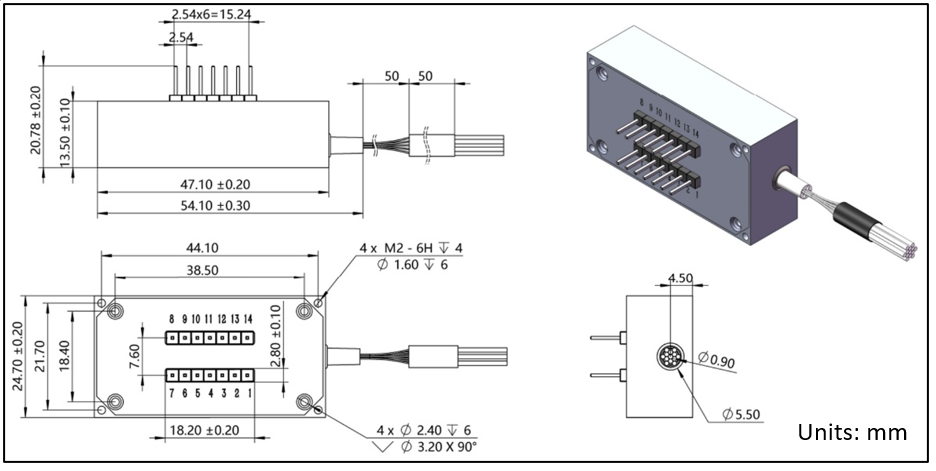

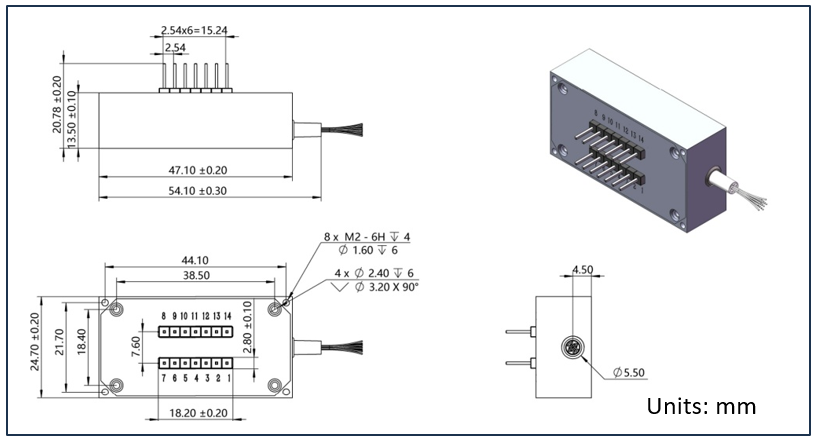

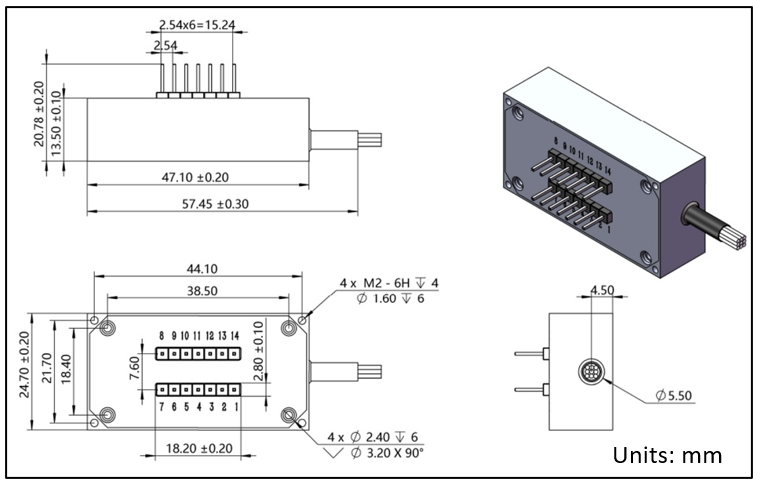

MEMS 1xN (2≤N≤64) Optical Switch – Module Package
The MEMS 1xN optical switch is based on MEMS (Micro-Electro-Mechanical Systems) technology and enables channel selection between a single input and N output optical paths. It features a compact size, long lifespan, and high reliability, making it widely used in optical network applications such as OADM and OXC.
Unit | Singlemode | Multimode | |||||||||||||
Channels | CH | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 2 | 4 | 8 | 16 | 32 |
Wavelength | nm | 1310±30 or 1550±30 or 1625±30 | 850±30 or 1310±30 | ||||||||||||
Max. Insertion Loss | dB | 0.6 | 0.7 | 0.8 | 1.0 | 1.0 | 1.2 | 1.4 | 1.5 | 1.6 | 0.6 | 0.7 | 0.8 | 1.0 | 1.4 |
Return Loss | dB | ≥50 | ≥30 | ||||||||||||
Repeatability | dB | ≤0.03 | ≤0.05 | ≤0.03 | |||||||||||
Cross Talk | dB | ≥50 | ≥45 | ≥30 | |||||||||||
PDL | dB | ≤0.15 | |||||||||||||
WDL | dB | ≤0.3@CWL±30 nm, 23℃ | |||||||||||||
TDL | dB | ≤0.3 | |||||||||||||
Operating Temperature | ℃ | -5 - 70 | |||||||||||||
Storage Temperature | ℃ | -40 - 85 | |||||||||||||
Switching Time | ms | ≤20 | |||||||||||||
Lifetime | Cycle | ≥1×109 | |||||||||||||
Drive Voltage | V | 5 - 12 V | |||||||||||||
- | TTL or TTL/RS232 or TTL/I2C | ||||||||||||||
Notes:
1.The above Insertion Loss (IL) values are measured at center wavelength ±30 nm at 23°C. For multi-band operation, increase by 0.2 dB.
2. Repeatability data is based on 100-cycle repeated measurements.
3. Excluding the connector, the insertion loss increases by 0.2dB with the connector included.
